P1AD-SAMMMXP
Between Series Adapters from P1dB

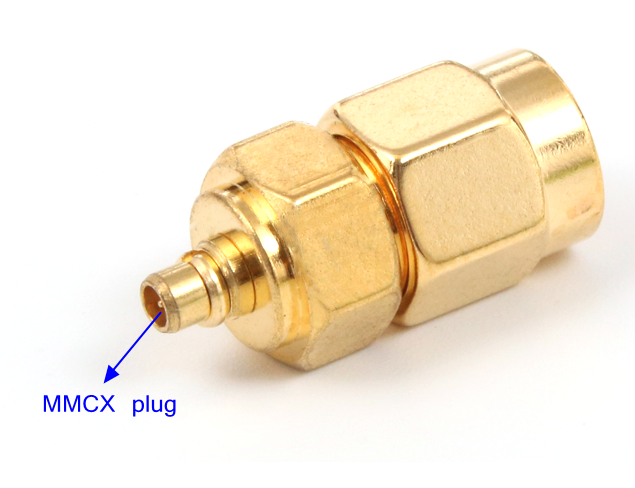

Adapter, SMA male to MMCX plug (male) Gold plated brass body, VSWR 1.3 max to 6 GHz.
Specifications |
Part Number:
P1AD-SAMMMXP
|
Status:
Standard
|
Datasheet:
|
RoHS Compliance:
Yes
|
Connector 1:
SMA Male
|
Connector 2:
MMCX Plug
|
Max. Frequency (GHz):
6.0
|
ConnBody1:
Gold Plated Brass
|
ConnContact1:
Gold Plated Beryllium Copper
|
OpTmpMin:
-40.0
|
OpTmpMax:
85.0
|
Max VSWR:
1.30
|
P1AD-SAFMXP is a 50 Ohm RF adapter, SMA male to MCX plug (male). Operating to 6 GHz with a max VSWR of 1.30. Adapter body is gold plated brass.
