P1DB Product View
Call For A Custom Quote
408-613-4857

P1CO-18FEL-05/09-LP

Edge Launch Connectors from P1dB

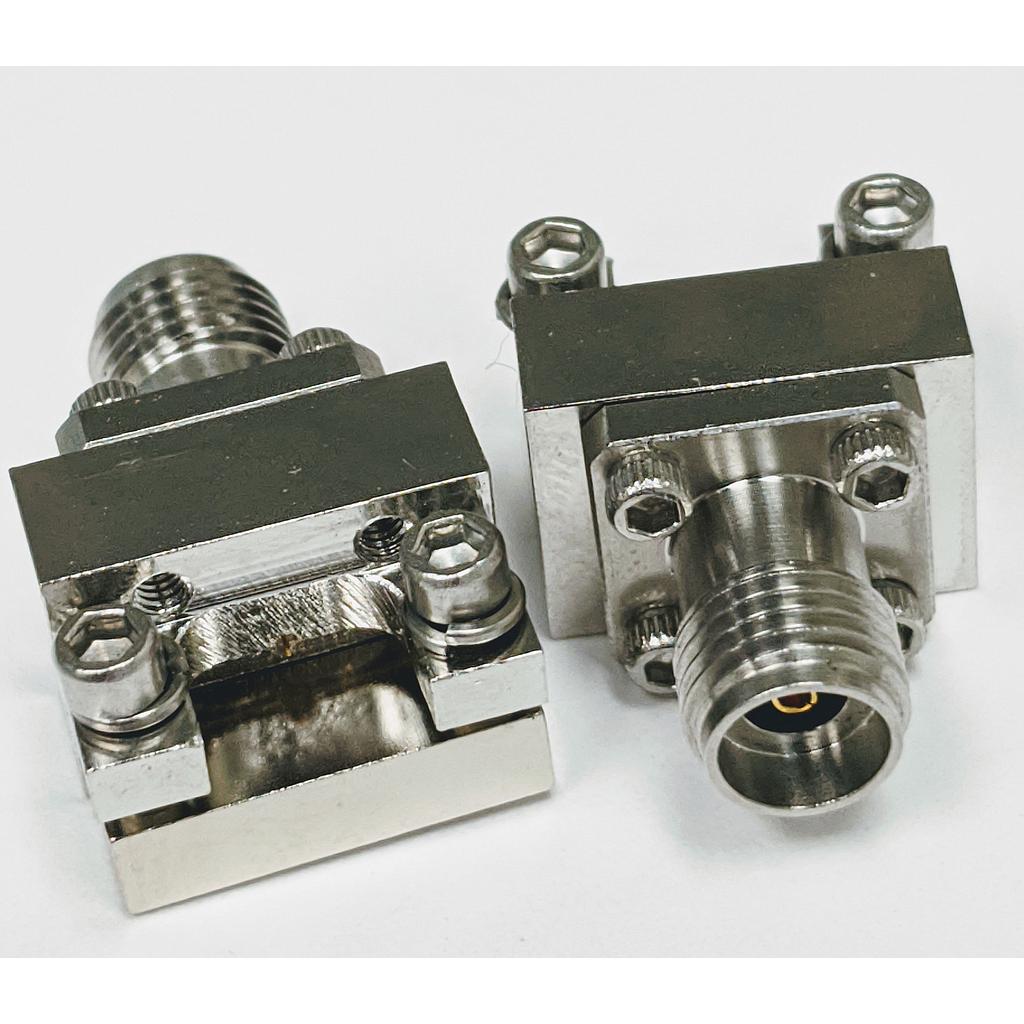

1.85 mm female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin. Frequency DC to 67 GHz.

Specifications
Part Number:
P1CO-18FEL-05/09-LP
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Max. Frequency (GHz):
67.0
Connector Type:
1.85 mm jack
Impedance (Ohms):
50.0
Gender:
Female
Orientation:
Straight
Termination Type:
Edge Launch PCB
Center Contact Diameter (inch):
.005

P1CO-18FEL-05/09-LP is a 1.85mm female (jack) 50 Ohm connector that operates to 67 GHz. It is a low profile edge launch connector that offers best electrical match when mating with Microstrip printed circuit boards. This DC to 67 GHz connector is field replaceable (non-solder attachment to PCB). The connector material is passivated stainless steel. Adjustable to accommodate PCB thickness up to 0.100 inch (2.54mm).

Dimension (A) Board:  The center contact (pin) diameter is .005 inch (0.13mm).

Dimension (B) Internal : The internal pin diameter is .009 inch (0.23mm).

Dimension (C) Dielectric: The dielectric diameter is .029 inch (0.74mm).


Qty: in Unit(s)

129.25 129.25 129.25 USD

129.25

Pricelist
Min. Qty
Price
  • 1
    $ 129.25
  • 10
    $ 112.64
In Stock:15.0
