P1CP-SAF-R518G30W-20
20 dB Couplers from P1dB

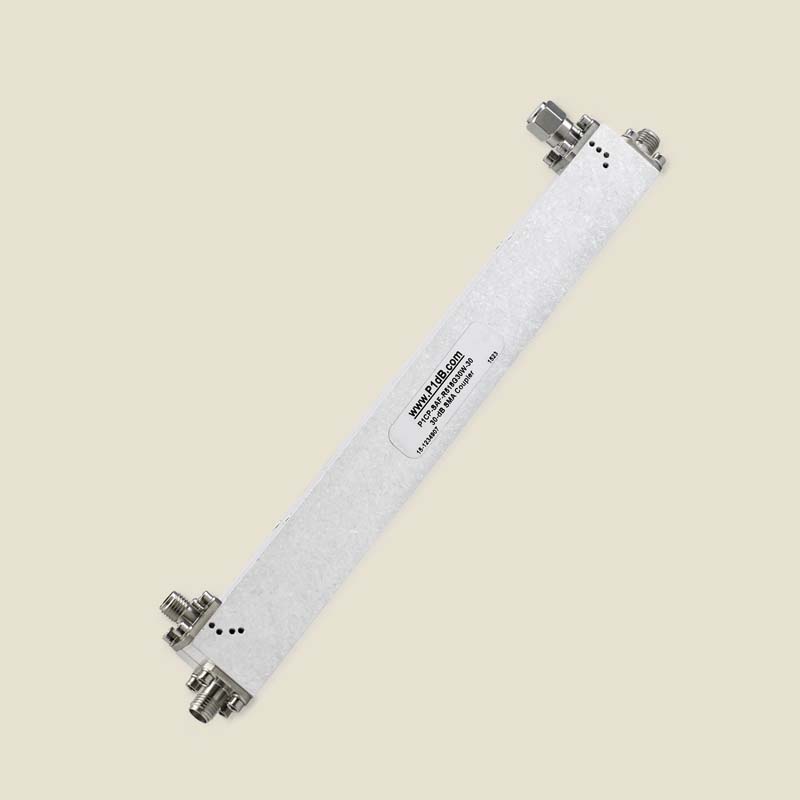

Coaxial RF 20 dB Directional Coupler, frequency band 500 MHz to 18 GHz. Power up to 30 Watts with SMA female connectors. Limited to stock on hand.
| Specifications |
|
Part Number:
P1CP-SAF-R518G30W-20
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Coupler Type:
Directional
|
|
Coupling (dB):
20.0
|
|
Frequency Min (MHz):
500.0
|
|
Frequency Max (MHz):
18000.0
|
|
Power Handling (W):
30.0
|
|
Insertion Loss (dB):
1.6
|
|
Isolation (dB):
15.0
|
|
Amplitude Imbalance (dB):
0.75
|
|
Connectors:
SMA
|
|
Directivity (dB):
22.0
|
|
Typ. Input VSWR:
1.35:1
|
|
Typ. Output VSWR:
1.35:1
|
P1CP-SAF-R518G30W-20 is a 50 Ohm RF coaxial coupler for the frequency band 0.5 GHz to 18 GHz. The coupler has SMA female (jack) connectors and can handle input power up to 30 Watts. Directivity is 22 dB. Flatness is 0.75 dB and Insertion Loss is 1.5 dB. VSWR is 1.35 max. The coupler body is 0.75 inch height x 6.5 inch length.
