Couplers

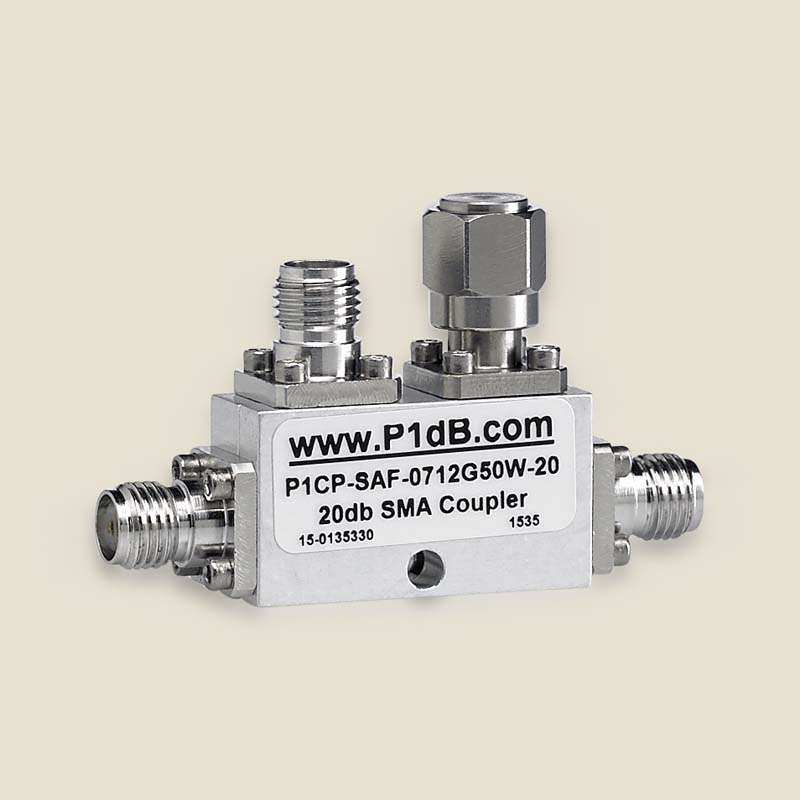

P1dB offers hybrid, directional and bi-directional (a.k.a. dual directional) coaxial RF and Microwave couplers from 100 MHz to 18 GHz. Our RF couplers are configured with SMA or N connectors. Standard coupling values of 6 dB, 10 dB, 16 dB, 20 dB and 30 dB.

P1dB couplers are lumped element components designs for low frequency models and micro-strip transmission line coupler designs for high frequency models.

Suspended-strip transmission line RF and Microwave couplers are also available for low-loss coupler requirements.
