SS085 RF Cables Meet HSD Requirements
SMA, 2.92mm, SMP and SMPM Standard and Phase Matched Cables available to 18 GHz

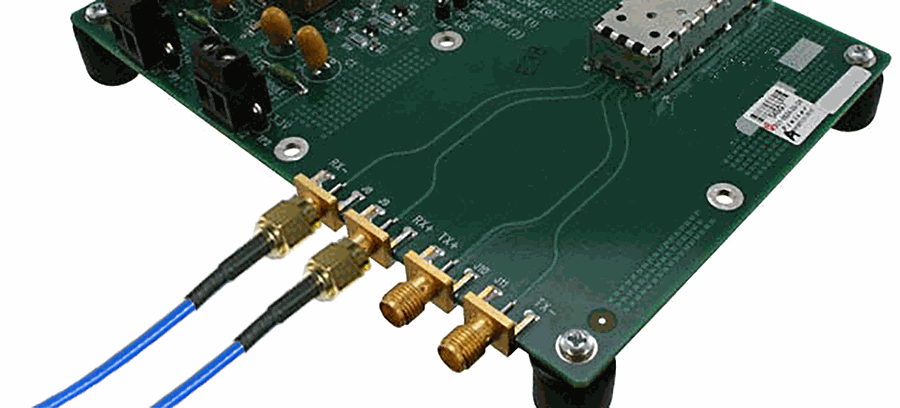

Test cables are an essential part of a test lab for measuring standard RF devices or High-Speed Digital (HSD) systems. Bulky test cables, though, will not meet every test system requirement, especially when testing RF boards with small connectors. The solution is to use small test jumpers to connect to a DUT (device under test) when a large cable puts a strain on a PCB connector or the connector density does not permit the use of large cables.
P1dB builds small-diameter flex cables using SS085 coax for situations where HSD and high-density RF applications require high-performance flex cables with excellent insertion loss and phase stability. P1dB’s HSD and RF cable assemblies feature flexible, high performance .085 diameter coax that is stable over flexure. That is why the SS085 coax is especially suited for measuring parallel signals that can be adversely affected by unstable cable delays.

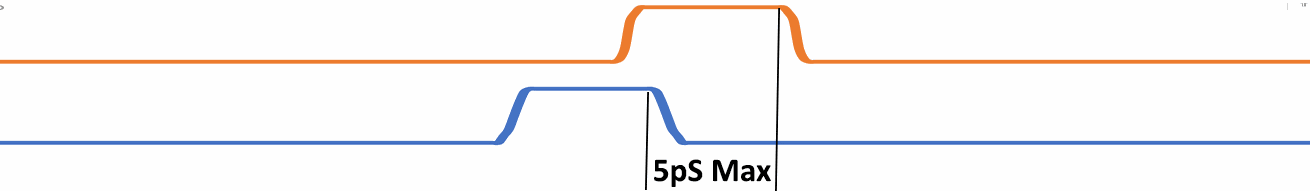

Choose from the connector options listed below and receive your high-performance phase matched cable assemblies within 2 weeks. Matched cable pairs are matched to 5ps (measured @ 10GHz) and are available with the following connector options: SMA, SMP (GPO™) or SMPM (GPPO™). Larger quantity phase matched cable groups or tighter phase matching is available upon request.
SS085 RF Cable Specifications
| Parameter | Value |
| Impedance | 50 Ohms |
| Max Frequency | 18 GHz |
| Velocity of Propagation | 70% |
| RF Isolation | >90 dB |
| Number of Shields | 2 |
| Bend Radius | 0.50 inches |
| Diameter | .095 inches (1.52mm) |
SS085 Coax Specifications
SS085 is a high-performance coax, which is a flexible version of RG405, .085 semi-rigid coax. SS085 is designed to operate to 40 GHz, but most of its uses are for 18 GHz and below applications. Its double-shielded outer conductor provides a level of RF stability and isolation that is similar to RG405 coax.
Although SS085 coax is a general purpose high-performance design, it is a good solution for short jumpers that are phase matched. That is because the coax can be terminated to hold a tight phase tolerance to 18 GHz. SS085 coax can also be phase matched to higher frequencies at an increased phase-match fee and longer delivery.
Standard SS085 cable assemblies can be phase matched to 5 pS to 18 GHz
SS085 Connectors

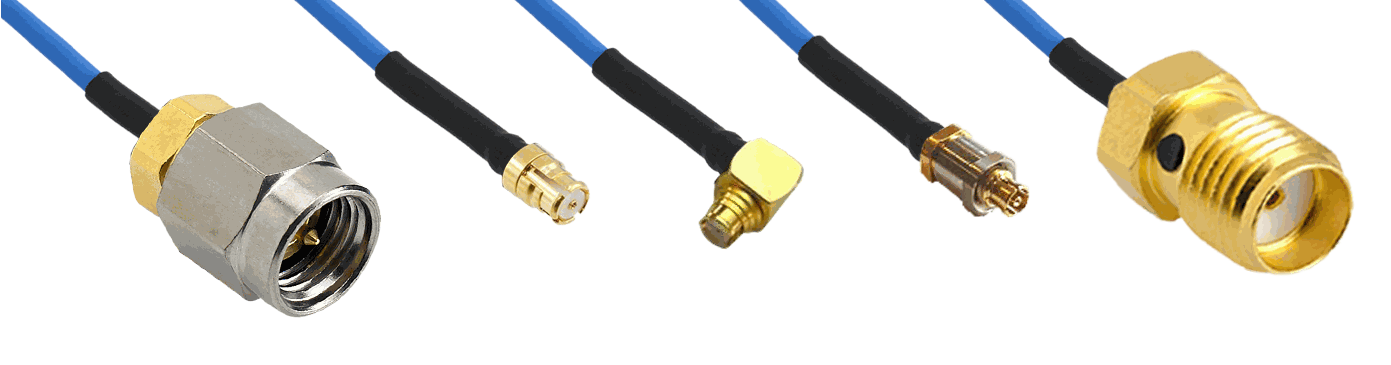

The many connector series that can be installed on the SS085 coax, such as SMA, 2.92mm, SMP and SMPM connectors. There are also of a variety of connector configurations that can be chosen, from a Male, Right Angle Male, Female or Female Bulkhead connector. Please review the table to find the desired configuration.
|
|
SMA Male
|
SMA Female
|
2.92mm Male*
|
SMP Female
|
SMP Female Right Angle |
SMP Female Bulkhead
|
SMPM Female
|
SMPM Female Bulkhead
|
|
SMA Male |
SAMSAM |
SAMSAF |
29MSAM |
SAMSPF |
SAMSPFRA |
SAMSPFB |
SAMSMF |
SAMSMFB |
|
SMA Female
|
SAMSAF |
SAFSAF |
29MSAF |
SAFSPF |
SAFSMPRA |
SAFSPFB |
SAFSMF |
SAFSMFB |
|
SMA Female Bulkhead
|
SAMSAFB |
SAFSAFB |
29MSAFB |
SAFBSPF |
SAFBSPFRA |
SAFBSPFB |
SAFBSMF |
SAFBSMFB |
|
2.92mm Male*
|
29MSAM |
29MSAF |
29M29M |
29MSPF |
29MSPFRA |
29MSPFB |
29MSMF |
29MSMFB |
|
SMP Female
|
SAMSPF |
SAFSPF |
29MSPF |
SPFSPF |
SPFSPFRA |
SPFSPFB |
SPFSMF |
SPFSMFB |
|
SMP Female Right Angle
|
SAMSPFRA |
SAFSPFRA |
29MSPFRA |
SPFSPFRA |
SPFRASPFRA |
SPFRASPFB |
SPFRASMF |
SPFRASMB |
|
SMPM Female
|
SAMSMF |
SAFSMF |
29MSMF |
SPFSMF |
SPFRASMF |
SPFBSMF |
SMFSMF |
SMFSMFB |
|
SMPM Female Right Angle
|
SAMSMFRA |
SAFSMFRA |
29MSMFRA |
SPFSMFRA |
SPFRASMFRA |
SPFBSMFRA |
SMFSMFRA |
SMFRASMB |
Part Number
P1dB builds flex cables in both inch and centimeter increments.Use the following part-number builder when ordering a cable assembly.
for flex cables in inches: P1CA-[connector code]-ss085-xxx
for flex cables in centimeters: P1CA-[connector code]-ss085-xxxCM
* 2.92mm and SMPM connectors will have a longer lead time.
