P1-ADP-NJSS/SMAPSS

Between Series Adapters from P1dB

RF Adapter, SMA Male to N Female, up to 18 GHz

Specifications
Part Number:
P1-ADP-NJSS/SMAPSS
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Feature:
None
Connector 2:
N Female
Interface Type:
Standard
Max VSWR:
1.25:1
Length (in):
1.17
Angle:
Straight
Mount:
None
Impedance:
50.0
Frequency (GHz):
18.0

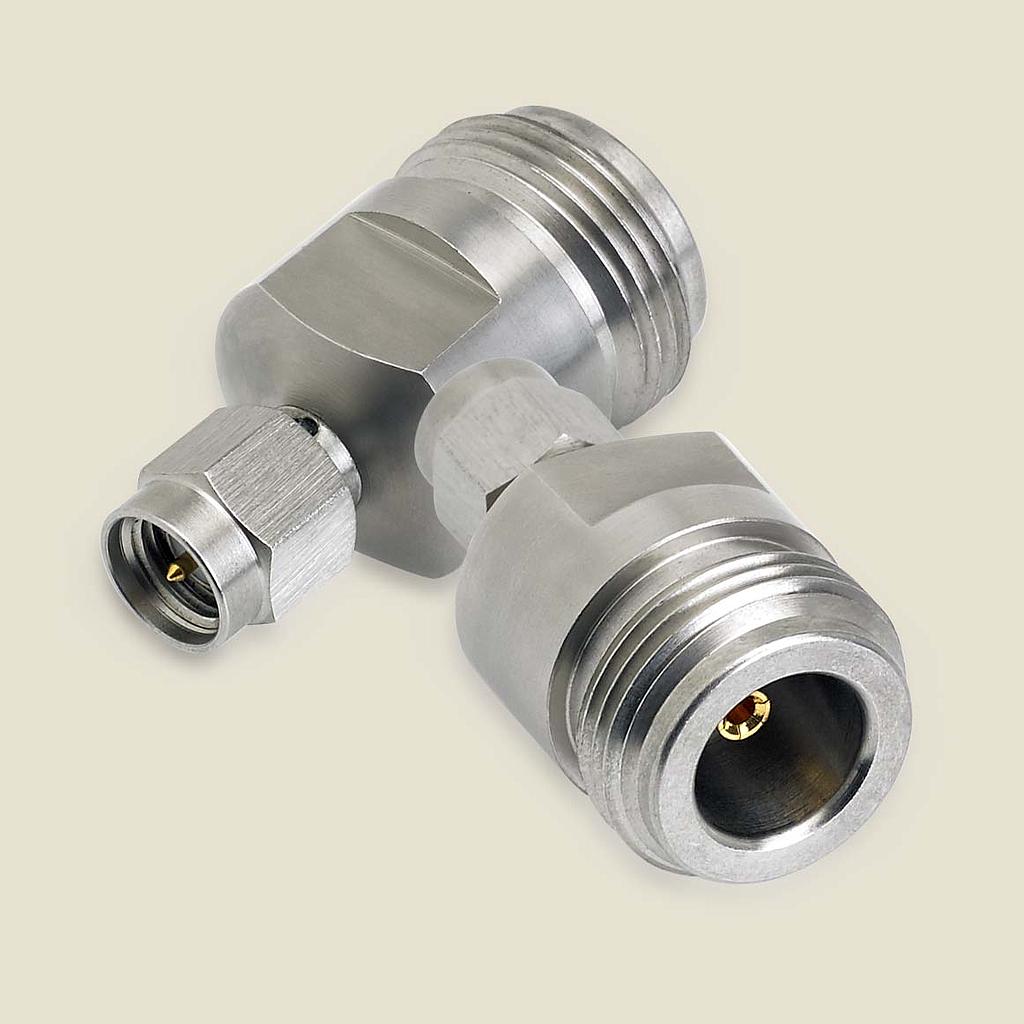

P1dB's P1-ADP-NJSS/SMAPSS is a 50 Ohm RF adapter. It is an SMA male (plug) to N female (jack) operating to 18 GHz.  Maximum VSWR is 1.25 to 18 GHz. The body is passivated stainless steel with an overall length of 1.17 inch.

Qty: in Unit(s)

15.45 15.45 15.450000000000001 USD

15.45

Pricelist
Min. Qty
Price
  • 1
    $ 15.45
  • 20
    $ 14.68
In Stock:119.0
