P1AD-24F29F

High Frequency Adapters from P1dB

RF Adapter, 2.4mm Female to 2.92mm Female, VSWR 1.25 max to 40 GHz

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1AD-24F29F
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
2.4mm Female
Connector 2:
2.92mm Female
Angle:
Straight
Mount:
None
Interface Type:
Standard
Feature:
None
Impedance:
50.0
Frequency (GHz):
40.0
Max VSWR:
1.25:1

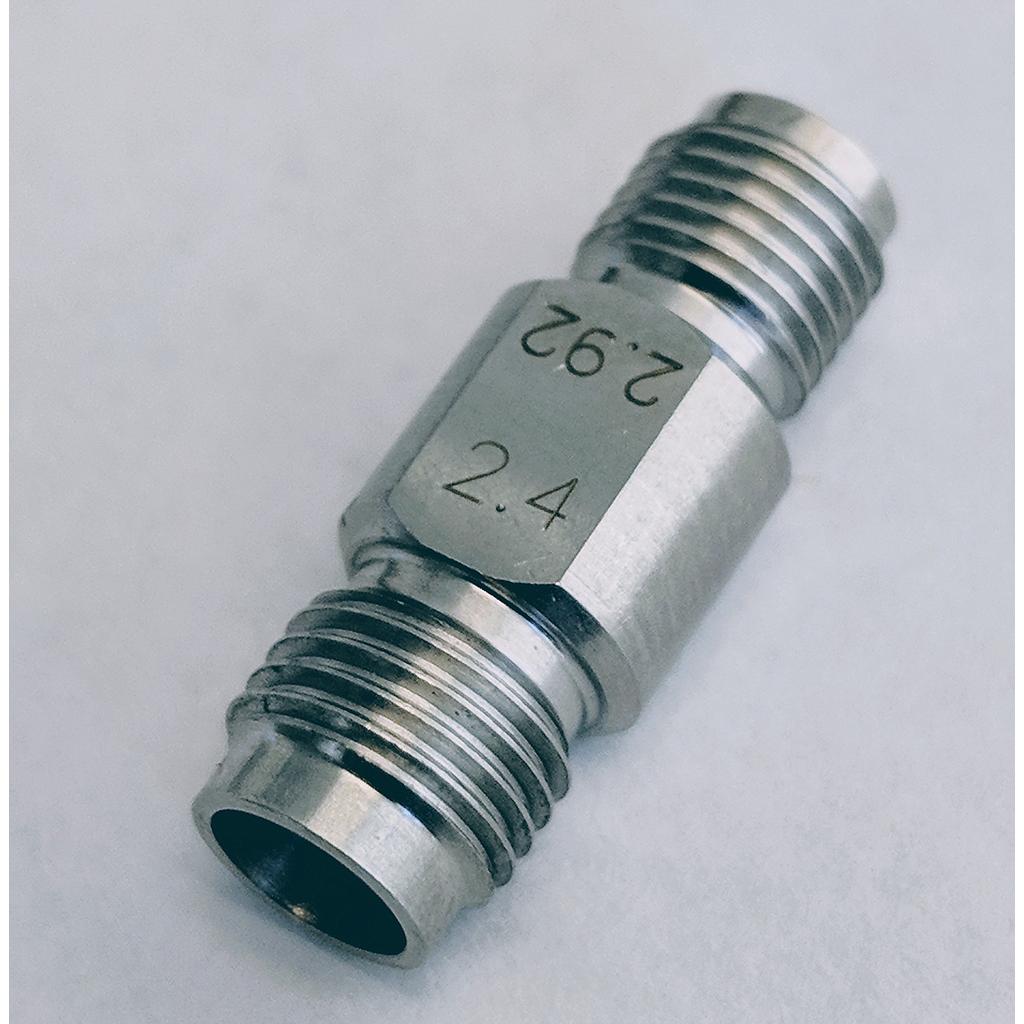

P1dB's P1AD-24F29F is a straight 2.4mm Female to 2.92mm Female adapter that operates to 40 GHz with a maximum VSWR of 1.25:1. It has a Stainless Steel body and meets operating temperatures from -85 to 125 degrees Celcius.

P1dB offers a large selection of standard and precision 50 Ohm RF adapters for lab, aerospace, industrial and commercial applications. In-series and between series options include 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA, Type N, TNC and BNC.

Qty: in Unit(s)

95.15 95.15 95.15 USD

95.15

Pricelist
Min. Qty
Price
  • 1
    $ 95.15
  • 10
    $ 89.45
  • 25
    $ 79.95
In Stock:10.0
