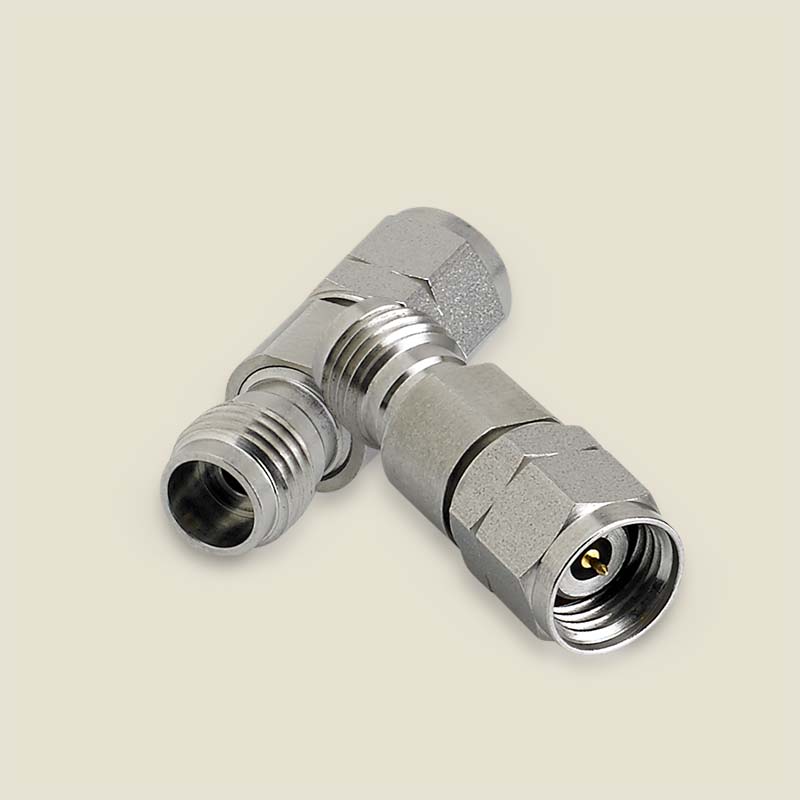

P1AT-18MF-67G2W-10
1.85mm Attenuators from P1dB
RF Attenuator, 1.85mm Male to 1.85mm Female, 10 dB, 2 Watt. Frequency DC to 67 GHz. VSWR 1.30 max.
| Specifications |
|
Part Number:
P1AT-18MF-67G2W-10
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
1.85mm Male
|
|
Connector 2:
1.85mm Female
|
|
Max VSWR:
1.30
|
|
Frequency Max (GHz):
67
|
|
Attenuation (dB):
10.0
|
|
Avg. Power (W):
2.0
|
P1AT-18MF-67G2W-6 is a 50 Ohm coaxial attenuator. The connectors are 1.8mm male to 1.8mm female. Frequency range is DC to 67 GHz with a max VSWR 1.30.
Attenuation is 10 dB. Power handling is 2 Watts maximum. The attenuator body is passivated stainless steel.
