P1AT-29MF-40G20W-10
2.92mm Attenuators from P1dB
RF Attenuator, 2.92mm Male to 2.92mm Female, 40 GHz, 10 dB, 20 Watts. VSWR up to 40 Ghz is 1.30 max.
| Specifications |
|
Part Number:
P1AT-29MF-40G20W-10
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
2.92mm Male
|
|
Connector 2:
2.92mm Female
|
|
Frequency Max (GHz):
40.0
|
|
Attenuation (dB):
10.0
|
|
Max Input Power (W):
20
|

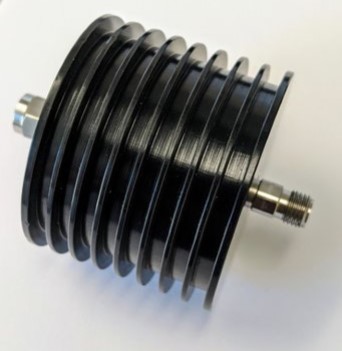

P1AT-29MF-40G20W-10 is a 50 Ohm fixed value 10dB RF attenuator. The attenuator has 2.92mm male to 2.92mm female connectors and operates DC to 40 GHz with a max VSWR 1.30. Power handling is 20 Watts.
Attenuation accuracy is +/- 1.0 dB.
The connectors are passivated stainless steel and the heat sink is aluminum, black anodized.
