P1AT-SAMF-18G5W-20

SMA Attenuators from P1dB

RF Attenuator, SMA Male to SMA Female, 18 GHz, 20 dB, 5 Watts

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1AT-SAMF-18G5W-20
Status:
standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Female
Frequency Max (GHz):
18.0
Attenuation (dB):
20.0
Attenuation Step Size (dB):
Fixed
Avg. Power (W):
5.0
Max VSWR:
1.35:1

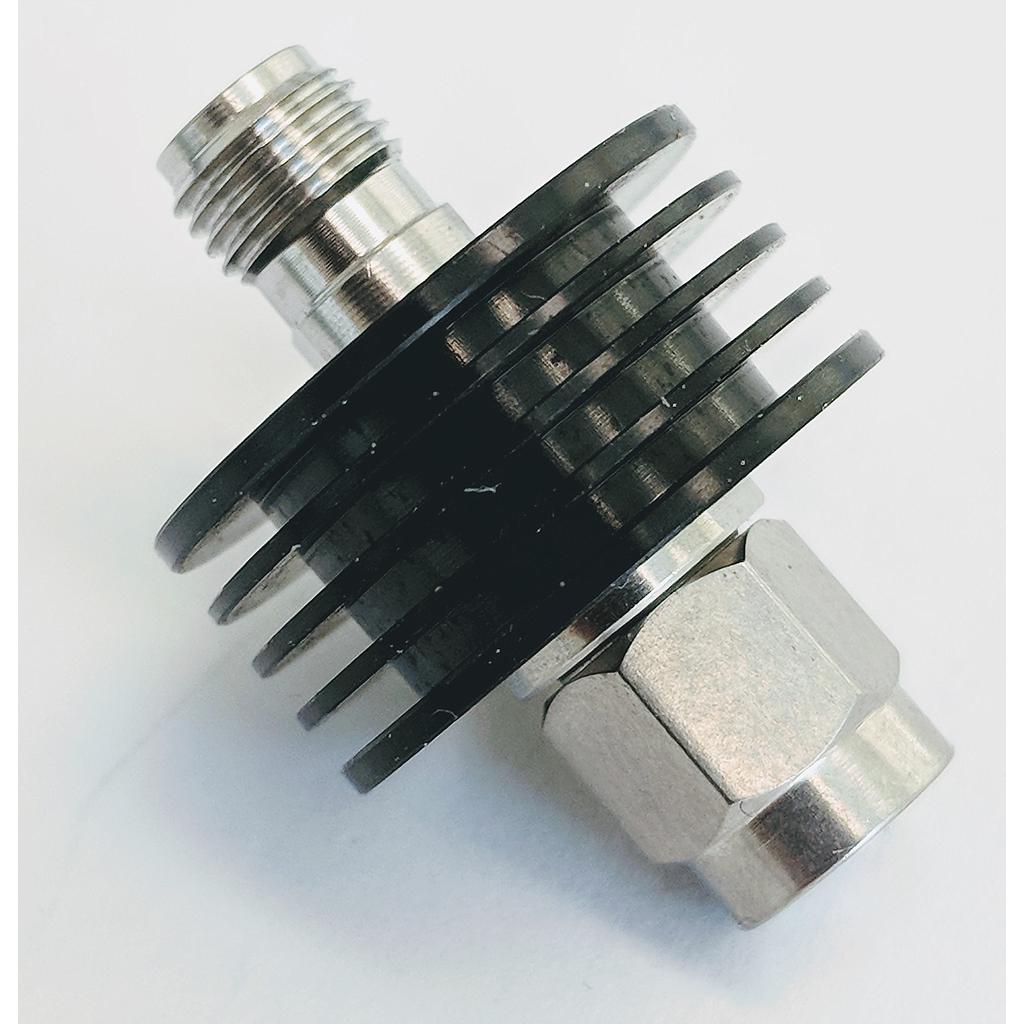

P1dB's P1AT-SAMF-18G5W-20 is a 50 Ohm RF coaxial attenuator with a fixed attenuation value of 20 dB. Operating up to 18 GHz, this SMA male to SMA female attenuator is rated for 5 Watt power. Maximum VSWR is 1.35.  The atttenuator has a black annodized aluminum heat sink.

Qty: in Unit(s)

64.95 64.95 64.95 USD

64.95

Pricelist
Min. Qty
Price
  • 1
    $ 64.95
  • 10
    $ 61.72
  • 25
    $ 59.24
In Stock:10.0
