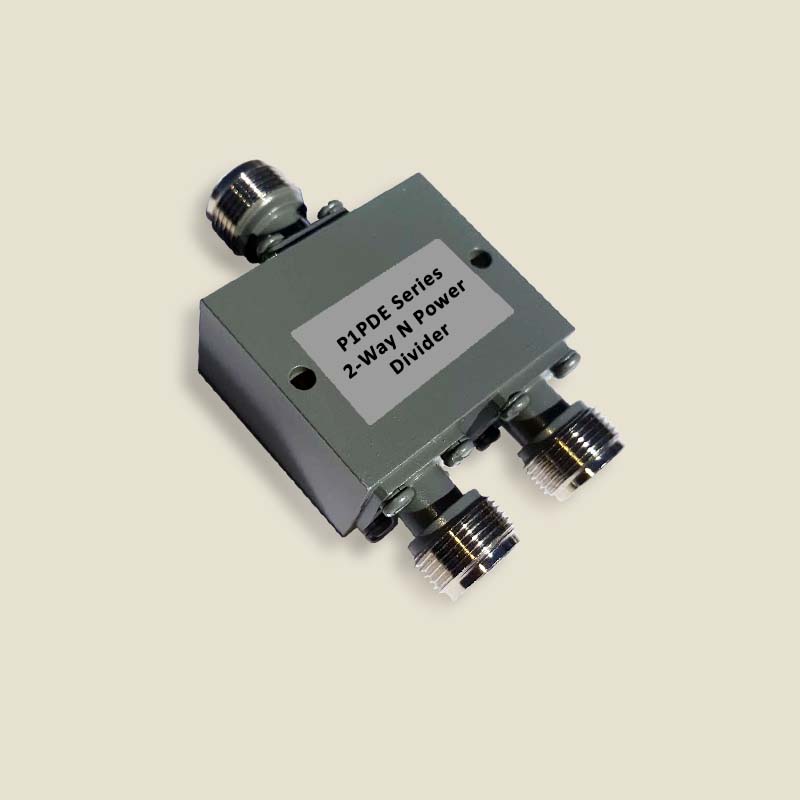

P1PD-NF-0208G10W-2
2-Way Power Dividers from P1dB
Coaxial RF 50 Ohm 2-way power divider, frequency range 2 to 8 GHz, 10 Watts, with N female (jack) connectors. Limited to stock on hand.
| Specifications |
|
Part Number:
P1PD-NF-0208G10W-2
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Frequency Min (MHz):
2000.0
|
|
Frequency Max (MHz):
8000.0
|
|
Power Handling (W):
10.0
|
|
Insertion Loss (dB):
0.6
|
|
Isolation (dB):
22.0
|
|
Amplitude Balance (dB):
0.2
|
|
Phase Imbalance ():
4.0
|
|
VSWR Input Max (dB):
16.5
|
|
Ports:
2.0
|
|
Connector Input:
N Female
|
The P1PD-NF-0208G10W-2 is one of P1dB's 2-way octave and multi-octave models that cover frequency bands as low as 700 MHz with N and SMA connector models and will work up to 12 GHz.
