P1-SMAJ/SMAJ-RG316-36

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

16.95 16.95 16.95 USD

16.95

This combination does not exist.

Add to Cart

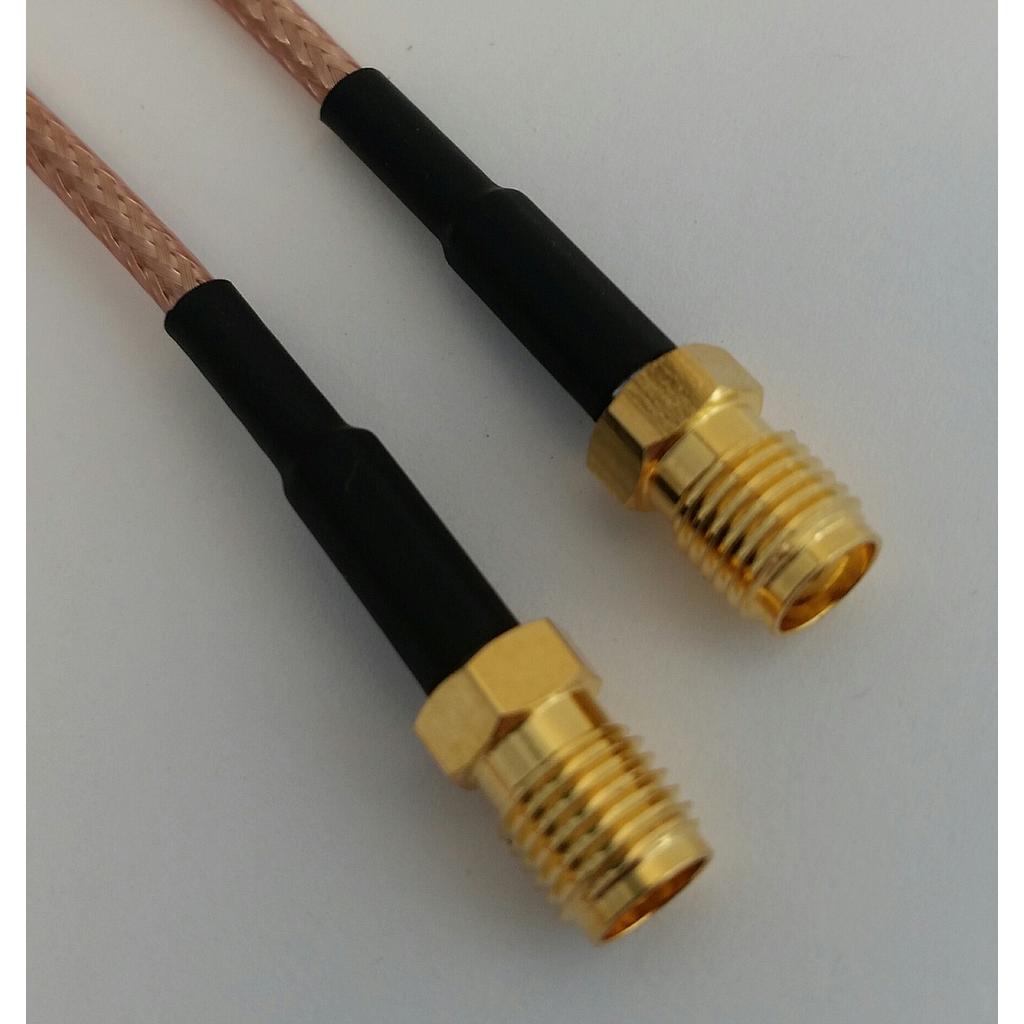

SMA Female to SMA Female cable using RG-316 RG Type Flex Coax, 36 inches long, and Operating to 6 GHz.


Connector 1: SMA Female
Connector 2: SMA Female
Cable Type: RG-316
Cable_Feature: RG Type Flex
Length (in): 36.0
Outer Diameter (in): 0.098
Max. Frequency (GHz): 6.0
Data.F1: 0.4
Data.F2: 1.0
Data.F3: 2.4
Data.F4: 5.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.3
VSWR4: 1.35
IL1: 0.18
IL2: 0.31
IL3: 0.49
IL4: 0.67
VoP: 69.5
ConnNut1: None
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Beryllium Copper
ConnNut2: None
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Beryllium Copper
InnerCond: 7/.0067 SPCW
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.5
OpTmpMin: -55.0
OpTmpMax: 200.0
Shield1: SPC Braid
