P1-SMAPRA/SMAPRA-085CJ-13

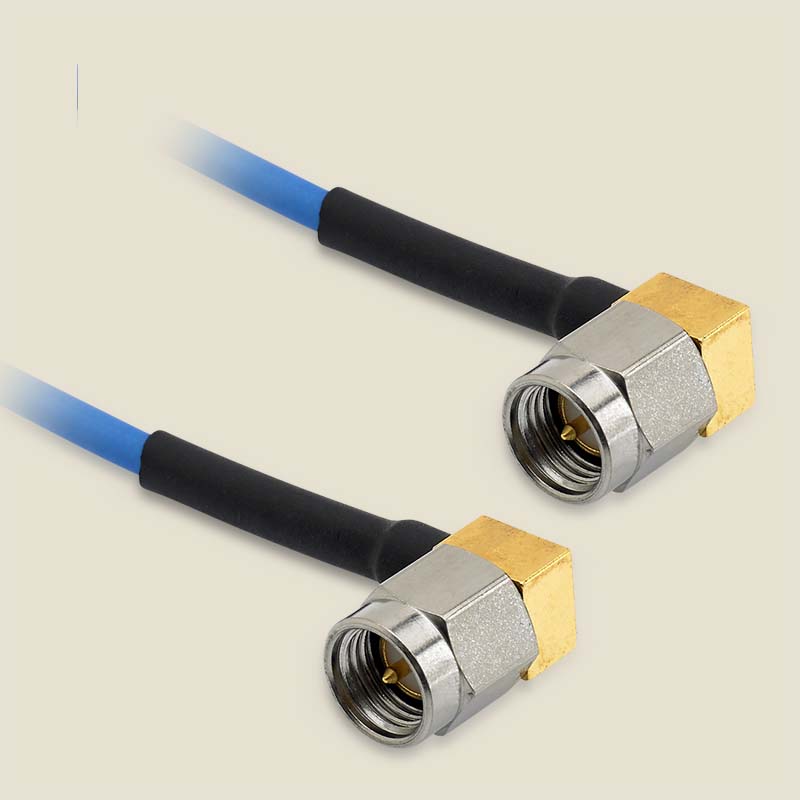

SMA Male Right Angle to SMA Male Right Angle cable assembly using 085CJ Jacketed Conformable Coax, 13 inches long, Operating to 18 GHz.
Connector 1:
SMA Male Right Angle
Connector 2:
SMA Male Right Angle
Cable Type:
085CJ
Cable_Feature:
Jacketed Conformable
Length (in):
13.0
Outer Diameter (in):
0.102
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.26
VSWR4:
1.35
IL1:
0.22
IL2:
0.49
IL3:
0.83
IL4:
1.18
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.38
OpTmpMin:
-85.0
OpTmpMax:
200.0
Shield1:
Tinned Cu/Sn Braid
