P1CA-SAFPT-034SR-3

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • IL1
  • IL2
  • IL3
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • InnerCond
  • Dielectric Material
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

18.95 18.95 18.95 USD

18.95

This combination does not exist.

Add to Cart

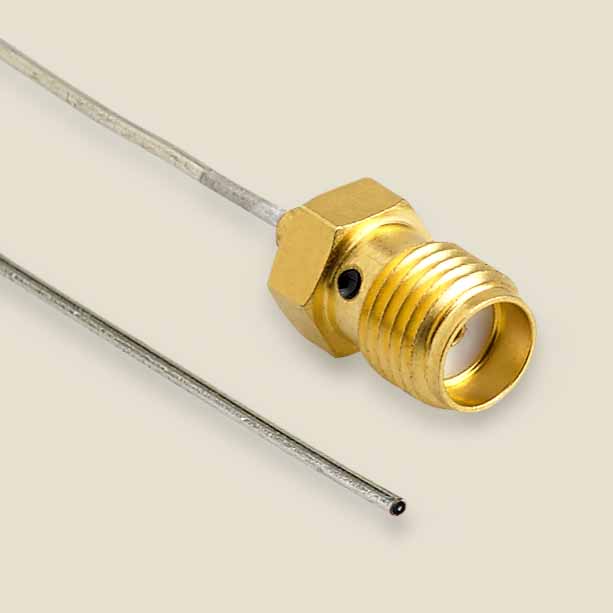

SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 3 inch.
Each assembly is RF tested DC to 6 GHz.


Connector 1: SMA Female
Connector 2: Pigtail - No Connector
Cable Type: 034SR
Cable_Feature: Semi-Rigid
Length (in): 3.0
Outer Diameter (in): 0.034
Max. Frequency (GHz): 6.0
Data.F1: 1.0
Data.F2: 3.0
Data.F3: 5.0
IL1: 0.48
IL2: 0.82
IL3: 1.59
VoP: 70.0
ConnNut1: None
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Beryllium Copper
InnerCond: SPCW
Dielectric Material: PTFE
JacketMat: None
MinBend: 0.05
OpTmpMin: -55.0
OpTmpMax: 125.0
Shield1: Tinned Copper
