P1CA-SAMSAM-SS141-48-PM

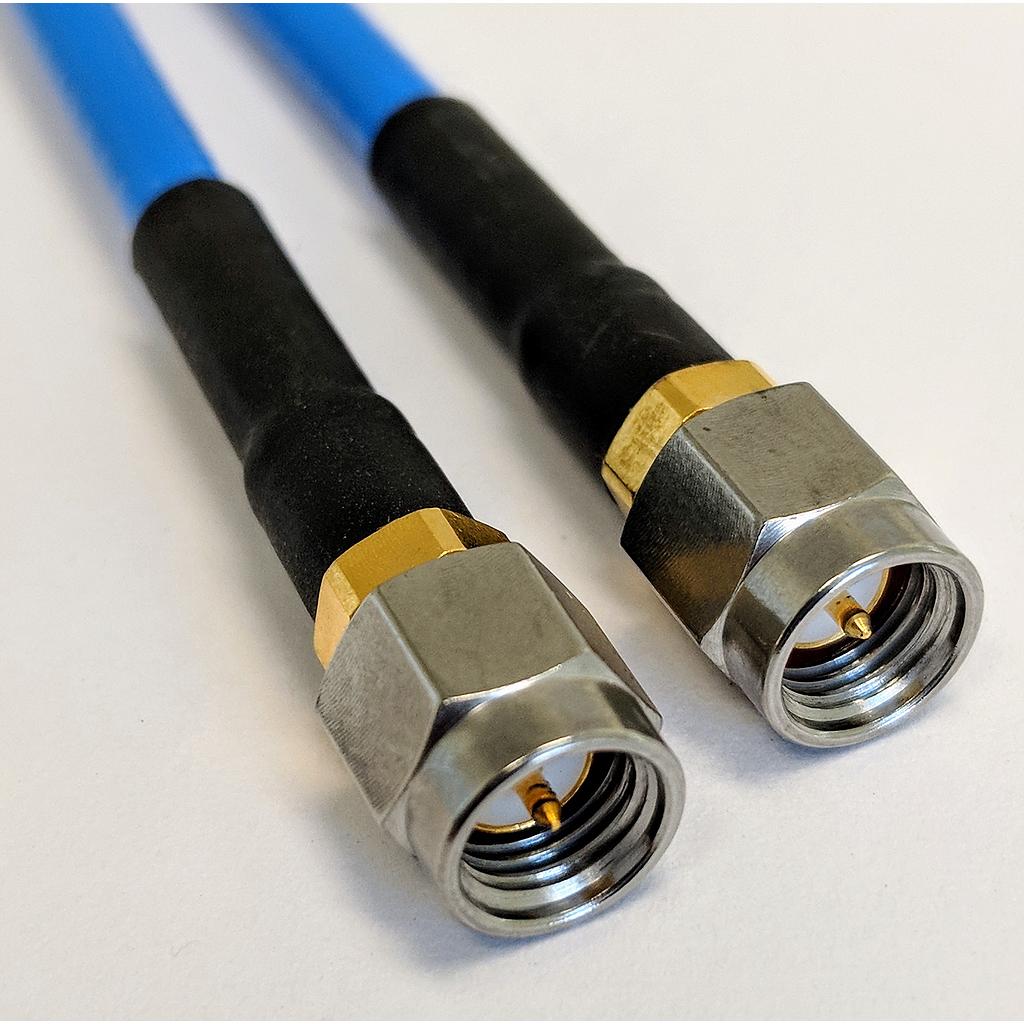

RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 48 inch.
Supplied as matched pairs (2 cables), phase matched +/- 5 degrees at 10 GHz, operating to 18 GHz.
Test data included.
Only sold in multiple of 2 (2,4, 6, etc.). Price is per cable.
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
SS141
Cable_Feature:
High Performance
Length (in):
48.0
Outer Diameter (in):
0.163
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
10.0
Data.F3:
18.0
VSWR1:
1.1
VSWR2:
1.2
VSWR3:
1.25
IL1:
0.13
IL2:
0.45
IL3:
0.64
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Brass
InnerCond:
SPC
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.8
OpTmpMin:
-55.0
OpTmpMax:
125.0
Shield1:
SPC Braid, SPC Ribbon
