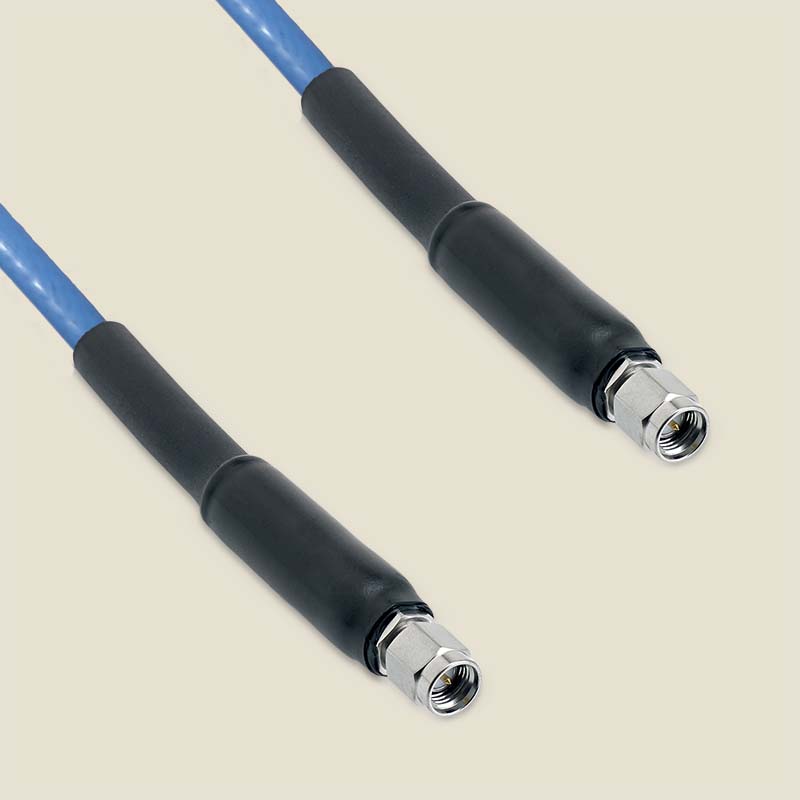

SMA Male to SMA Male test cable using SS141 High Performance Coax, 72 inch.
Frequency DC to 18 GHz.


Connector 1: SMA Male
Connector 2: SMA Male
Cable Type: SS141
Length (in): 72.0
Outer Diameter (in): 0.163
Data.F1: 1.0
Data.F2: 10.0
Data.F3: 18.0
VSWR1: 1.1
VSWR2: 1.2
VSWR3: 1.25
IL1: 0.13
IL2: 0.45
IL3: 0.64
VoP: 70.0
InnerCond: SPC
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.8 inch
OpTmpMin: -55.0
OpTmpMax: 125.0
