P1CA-SAMSAM-SS141-72-RN

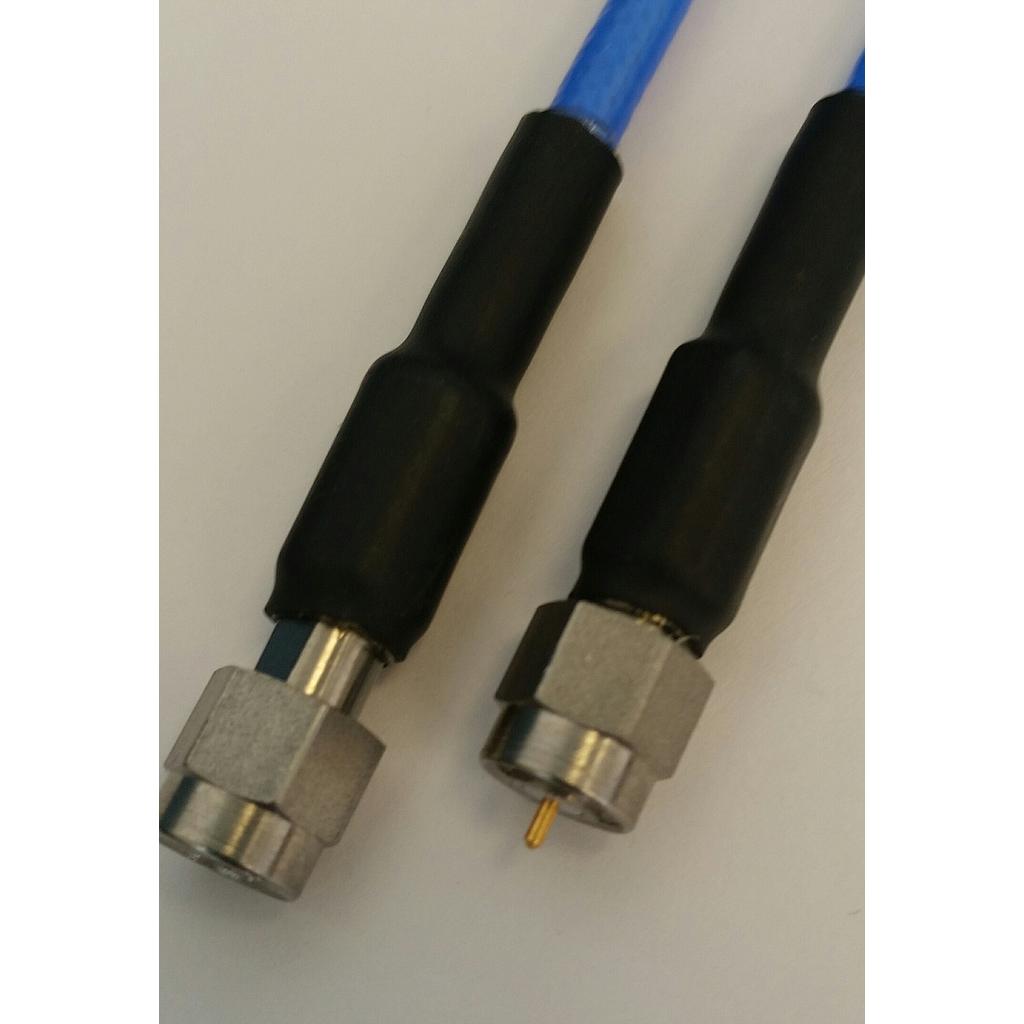

SMA Male to SMA Male test cable using SS141 High Performance Coax, 72 inches long, Operating to 27 GHz.
The SMA coupling nut retracts for visual mating of the center contacts.
Availability limited to current stock.
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
SS141
Cable_Feature:
High Performance
Length (in):
72.0
Outer Diameter (in):
0.163
Max. Frequency (GHz):
27.0
Data.F1:
1.0
Data.F2:
10.0
Data.F3:
18.0
Data.F4:
27.0
VSWR1:
1.1
VSWR2:
1.2
VSWR3:
1.25
VSWR4:
1.3
IL1:
0.13
IL2:
0.45
IL3:
0.64
IL4:
0.88
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Brass
InnerCond:
SPC
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.08
OpTmpMin:
-55.0
OpTmpMax:
200.0
Shield1:
SPC Braid, SPC Ribbon
