P1CA-SPFSMF-SS085-10

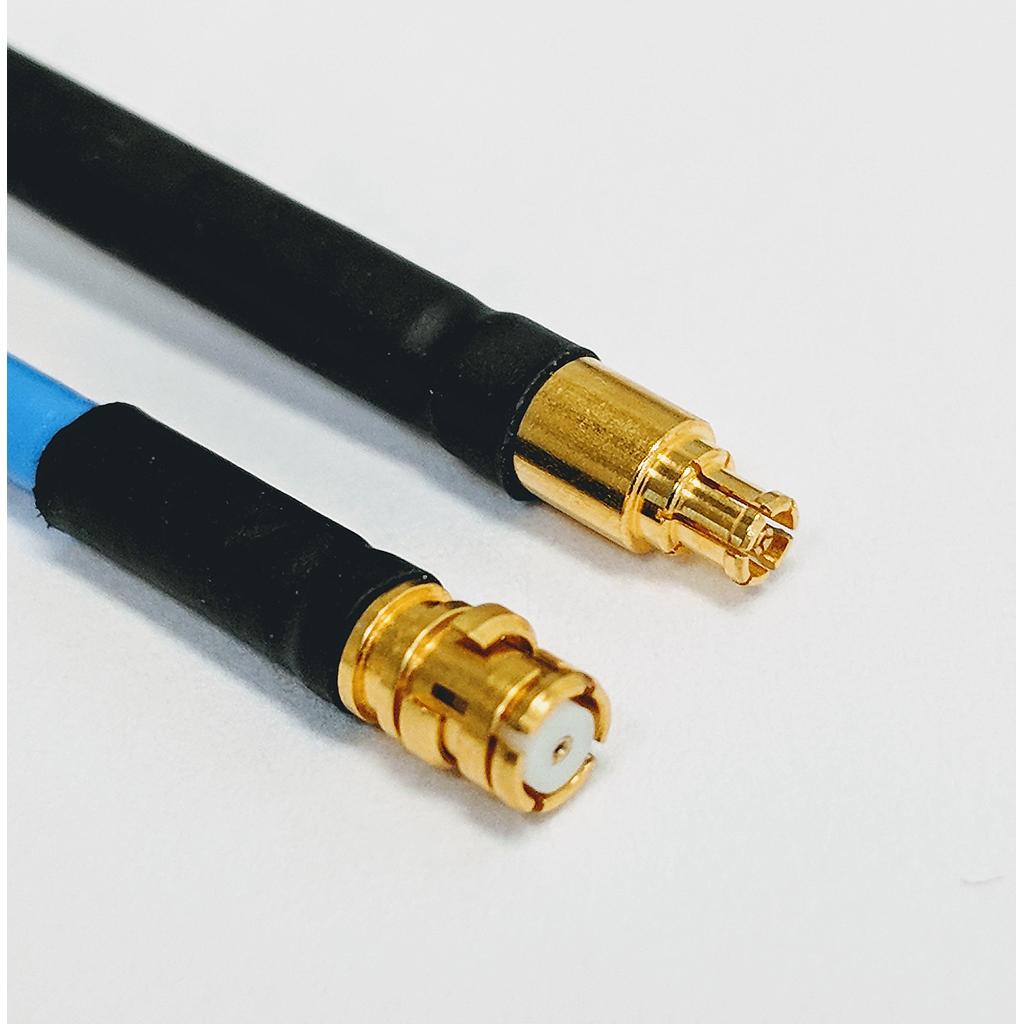

SMP straight female to SMPM straight female, SS085 RF flex cable (RG405), 10 inch.
Connector 1:
SMP straight
Connector 2:
Connector 2: SMPM straight
Cable Type:
SS085
Cable_Feature:
High Performance
Length (in):
10.0
Outer Diameter (in):
0.104
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.23
IL2:
0.52
IL3:
0.8
IL4:
1.1
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
None
ConnBody2:
Gold Plated Beryllium Copper
ConnContact2:
Gold Plated Beryllium Copper
InnerCond:
SPC
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.25
OpTmpMin:
-55.0
OpTmpMax:
165
Shield1:
SPC Ribbon
