P1CA-STMSTM-ST085-9
This product has no valid combination.

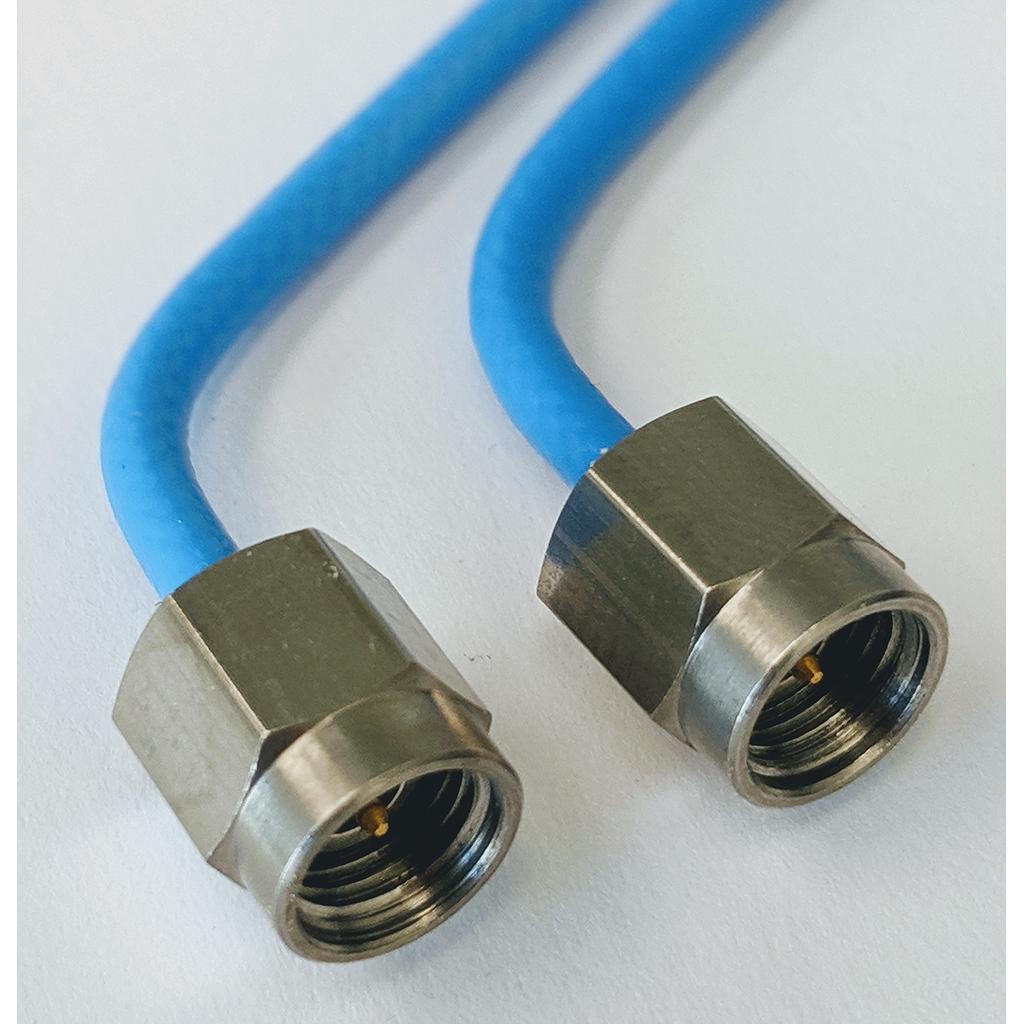

SMA Male to SMA Male cable assembly using ST085 Tight-Flex, Triple Shielded Coax, 9 inches long, Operating to 18 GHz.
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
ST085
Cable_Feature:
Tight-Flex, Triple Shielded
Length (in):
9.0
Outer Diameter (in):
0.104
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
VSWR1:
1.15
VSWR2:
1.2
VSWR3:
1.25
VSWR4:
1.3
IL1:
0.21
IL2:
0.51
IL3:
0.75
IL4:
1.04
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.2
OpTmpMin:
-55.0
OpTmpMax:
125.0
Shield1:
SPC Tape, Aluminum Tape, SPC Braid
