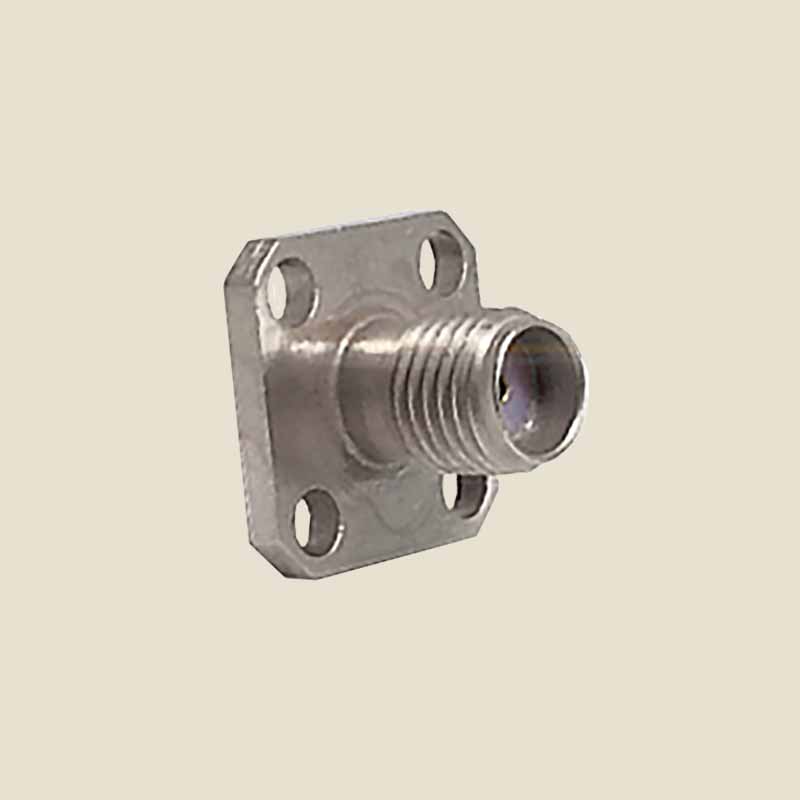

P1CO-SAF4-FE015-27G
Connector, SMA Female, 4-Hole Panel Mount, Field Replaceable with raised metal ring to reduce RF leakage.
Mates with a .015 inch pin. Frequency DC to 27 GHz with a 1.15 max VSWR.
Max. Frequency (GHz):
27.0
Connector Type:
SMA
Impedance (Ohms):
50.0
Gender:
Female
Orientation:
Straight
Mounting Style:
4-Hole Flange
Termination Style:
Socket
Termination Type:
Field Replace Socket .015
Outer Body Plating:
Passivated Stainless Steel
Inner Contact Plating:
Gold
