Coaxial Terminations

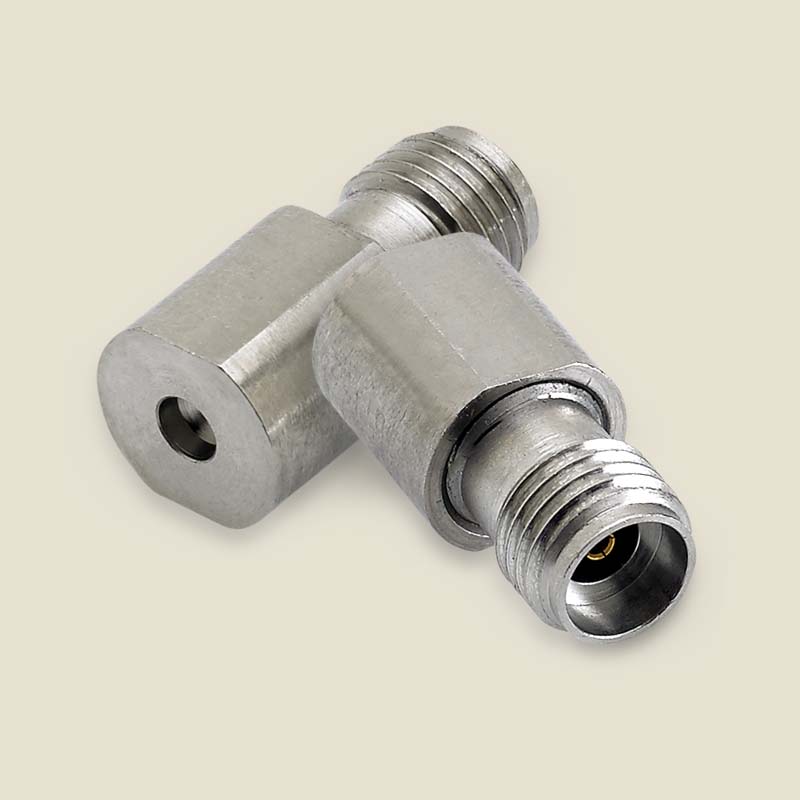

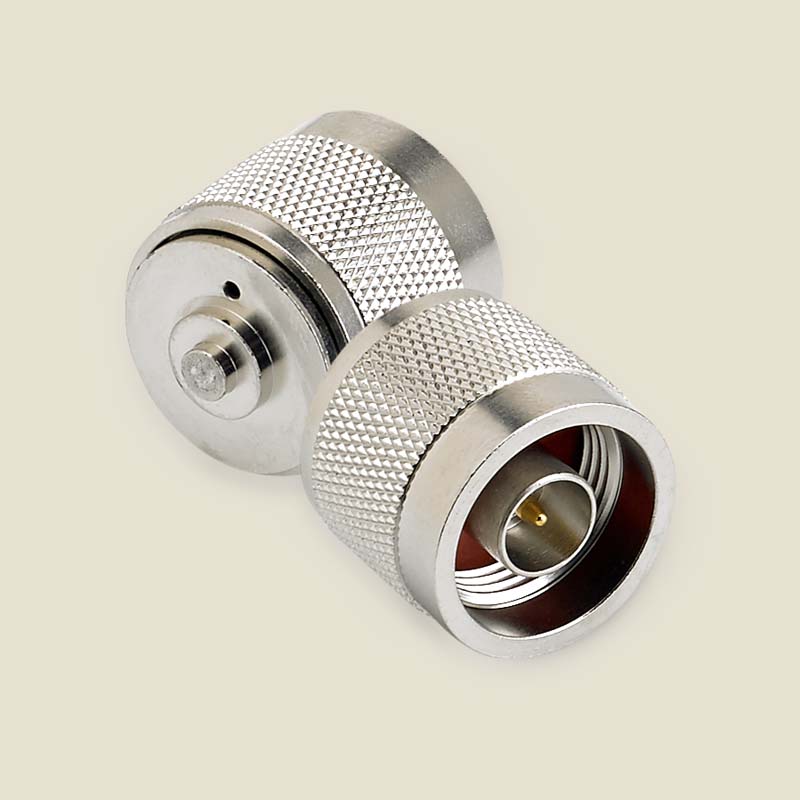

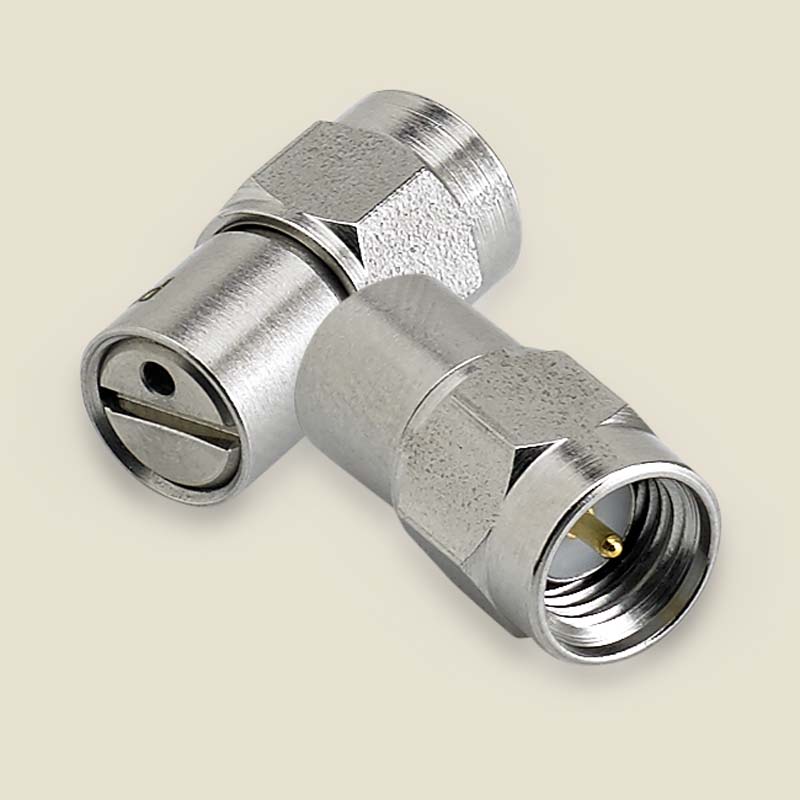

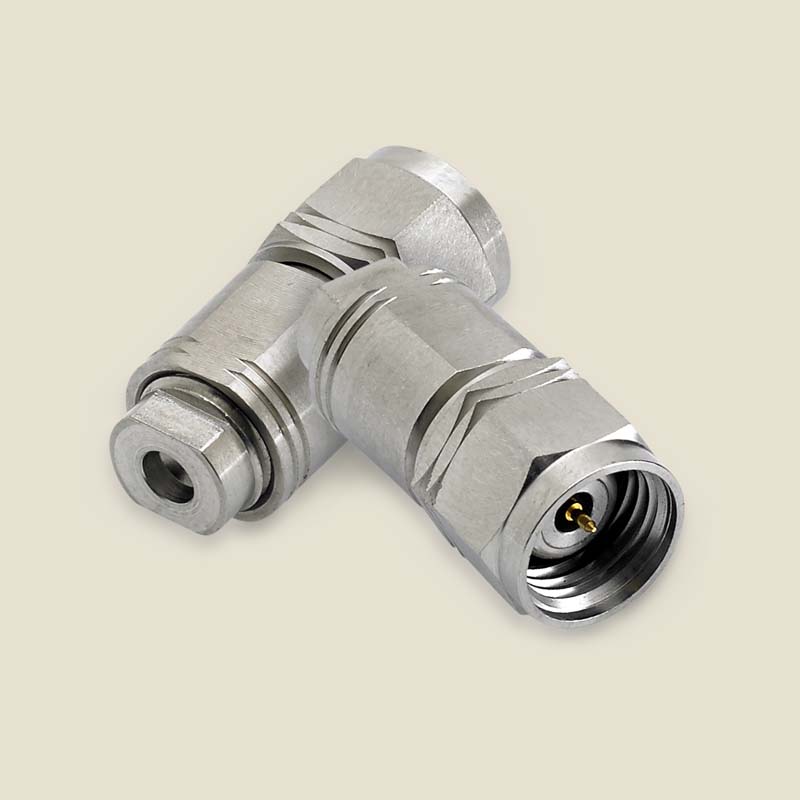

P1dB RF Terminations, also known as RF Loads or Dummy Loads, are offered in standard or Low PIM designs. Standard designs use thick-film resistive networks to terminate RF signals, while Low PIM versions use lossy coax to dampen RF power. Standard RF Loads operate from DC to the maximum designed frequency, while Low PIM loads operate across a specific frequency range. RF Terminations are available in power levels to 300 Watts and frequencies to 65 GHz in both Male with Female connector options. SMA, N, TNC and 7/16 RF terminations are the most common, but other connector options are available upon request.
