Coaxial Terminations

P1dB RF Terminations, also known as RF Loads or Dummy Loads, are offered in standard or Low PIM designs. Standard designs use thick-film resistive networks to terminate RF signals, while Low PIM versions use lossy coax to dampen RF power. Standard RF Loads operate from DC to the maximum designed frequency, while Low PIM loads operate across a specific frequency range. RF Terminations are available in power levels to 300 Watts and frequencies to 65 GHz in both Male with Female connector options. SMA, N, TNC and 7/16 RF terminations are the most common, but other connector options are available upon request.

Click Here if you do not find the desiredCoaxial Terminations.

P1TR-SAM-6G1W
RF Termination, SMA Male, 1 Watt, 6 GHz.
Limited to stock on hand.
9.55 9.55 9.55 USD
Pricelist
Min. Qty
Price
  • 25
    $ 8.2
Length (in)
0.58
Max VSWR
1.15:1
Avg. Power (W)
1.0
Connector
SMA Male
Max Frequency (GHz)
6.0
P1TR-24F-50G1W
RF Termination, 2.4mm Female, 1 Watts, 50 GHz.
Limited to stock on hand.
191.58 191.58 191.58 USD
Pricelist
Min. Qty
Price
  • 1
    $ 191.58
Length (in)
0.67
Max VSWR
1.45:1
Avg. Power (W)
1.0
Connector
2.4mm Female
Max Frequency (GHz)
50.0
P1TR-18M-65G1W
RF Termination, 1.85 mm Male, 1 Watt, DC to 65 GHz.
318.95 318.95 318.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 318.95
Length (in)
0.66
Max VSWR
1.45 to 65 GHz
Avg. Power (W)
1.0
Connector
1.85mm Male
Max Frequency (GHz)
65.0

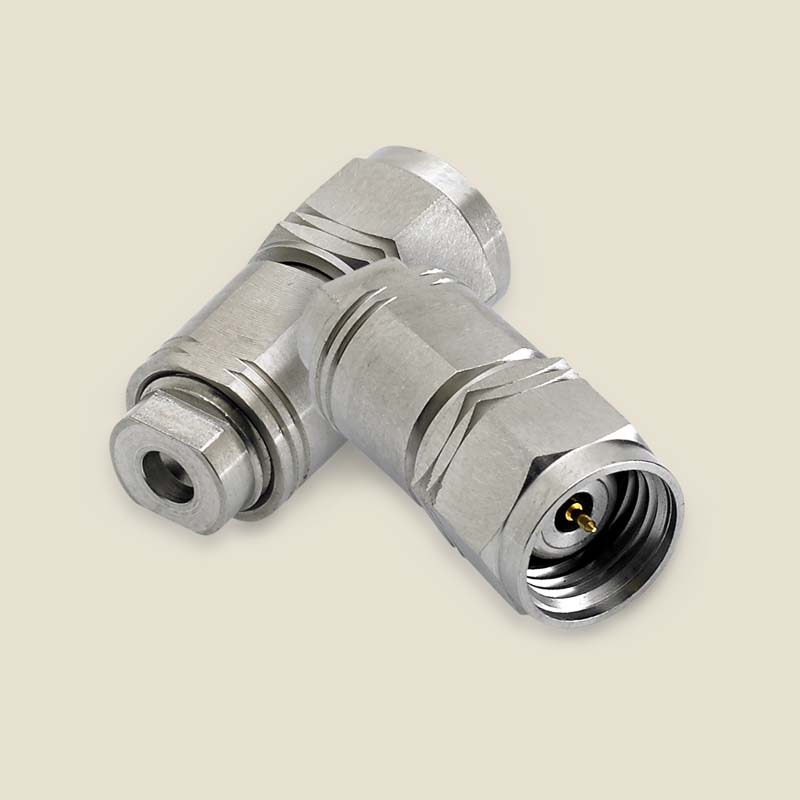

P1TR-24M-50G1W
RF Termination, 2.4mm Male, 1 Watts, 50 GHz
191.58 191.58 191.58 USD
Pricelist
Min. Qty
Price
  • 1
    $ 191.58
Length (in)
0.67
Max VSWR
1.45:1
Avg. Power (W)
1.0
Connector
2.4mm Male
Max Frequency (GHz)
50.0

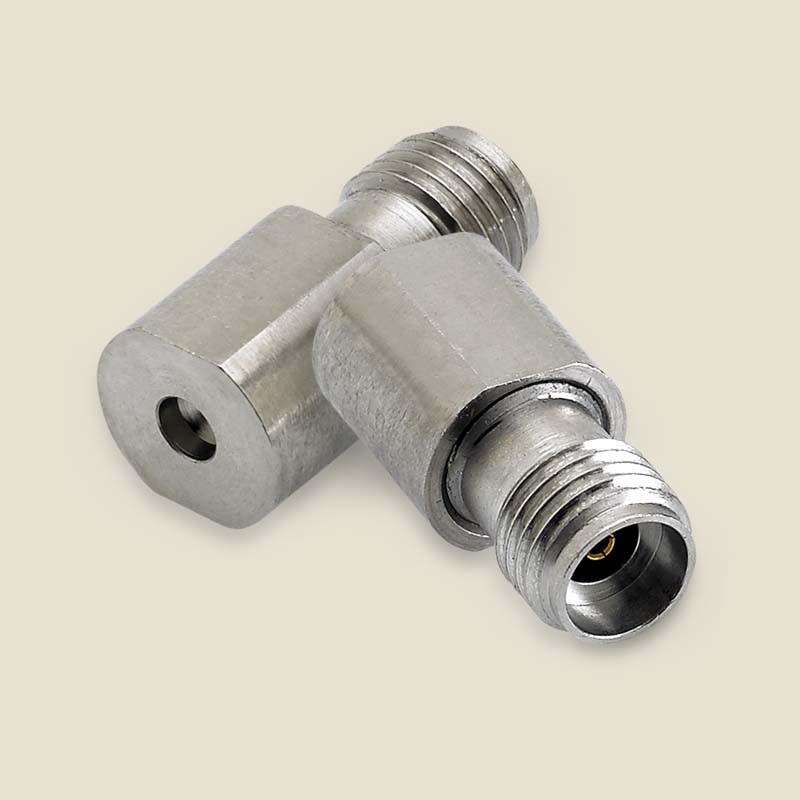

P1TR-29F-40G2W
RF Termination, 2.92mm Female, 2 Watts, 40 GHz
139.88 139.88 139.88 USD
Pricelist
Min. Qty
Price
  • 1
    $ 139.88
Length (in)
0.61
Max VSWR
1.25:1
Avg. Power (W)
2.0
Connector
2.92mm Female
Max Frequency (GHz)
40.0

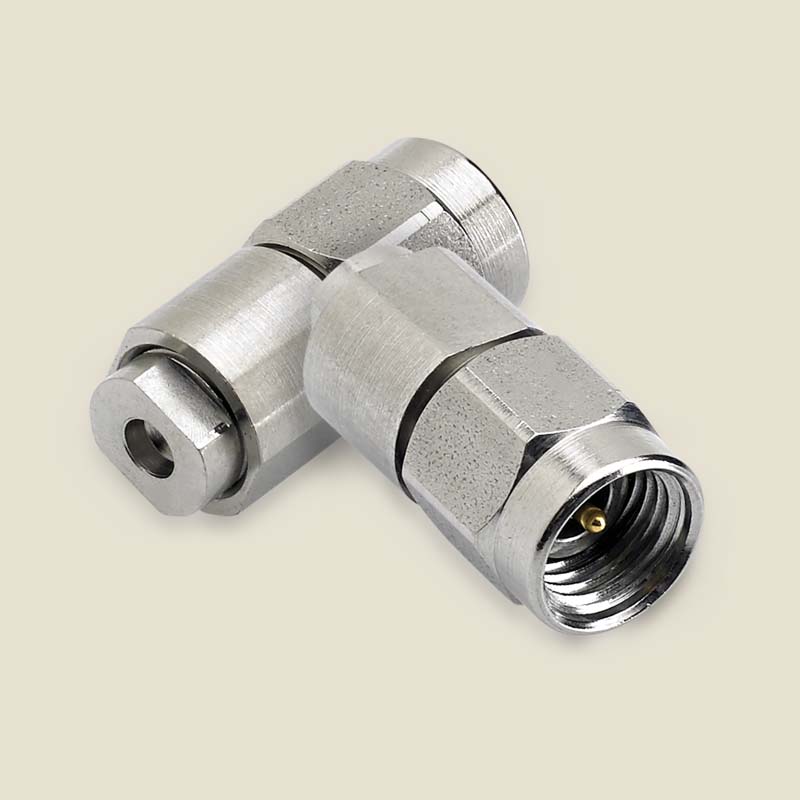

P1TR-29M-40G2W
RF Termination, 2.92mm Male, 2 Watts, 40 GHz
139.88 139.88 139.88 USD
Pricelist
Min. Qty
Price
  • 1
    $ 139.88
Length (in)
0.67
Max VSWR
1.25:1
Avg. Power (W)
2.0
Connector
2.92mm Male
Max Frequency (GHz)
40.0
P1TR-SAM-26G2W
RF Termination, SMA Male, 2 Watts, frequency to 26.5 GHz
39.75 39.75 39.75 USD
Pricelist
Min. Qty
Price
  • 1
    $ 39.75
  • 10
    $ 37.76
Length (in)
0.38
Max VSWR
1.20
Avg. Power (W)
2.0
Connector
SMA Male
Max Frequency (GHz)
26.5
P1TR-SAM-6G2W
RF Termination, SMA Male, 2 Watts, 6 GHz, Passivated Stainless Steel.
Limited to stock on hand.
17.95 17.95 17.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 17.95
Length (in)
0.58
Max VSWR
1.2:1
Avg. Power (W)
2.0
Connector
SMA Male
Max Frequency (GHz)
6.0
P1TR-SAM-18G2W
RF Termination, SMA Male, 2 Watts, 18 GHz
19.95 19.95 19.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.95
Length (in)
0.58
Max VSWR
1.3:1
Avg. Power (W)
2.0
Connector
SMA Male
Max Frequency (GHz)
18.0
P1TR-NM-6G2W
RF Termination, N Male, 2 Watts, 6 GHz.
Limited to stock on hand.
17.54 17.54 17.54 USD
Pricelist
Min. Qty
Price
  • 1
    $ 17.54
Length (in)
1.0
Max VSWR
1.2:1
Avg. Power (W)
2.0
Connector
N Male
Max Frequency (GHz)
6.0
