UFP Jumpers Operate to 6 GHz

U.FL and MHF Compatible

P1dB’s UFP ultra-miniature coax jumper series is a low-profile design that is fully compatible with Hirose's U.FL™ and IPEX's MHF™ connectors and jumpers. Our UFP jumpers are available in a variety of coax options, which are U081 (0.081mm), U113 (1.13mm), U132 (1.32mm), U137 (1.37mm), 047CC (1.19mm), and RG178  (1.80mm). The U series coax options are industry standard single shielded designs that offer excellent flexibility. Our 047CC coax is a conformable design that offers the lowest loss and the highest isolation of all of the coax options. In addition, our RG178 coax is a single-shield coax that has the broadest selection of connectors. Between all of the coax options, P1dB will be able to build a configuration that meets most UFP applications.

There are many coax options available for our U series coax, but the broadest selection of options are available for our conformable 047CC and flexible RG178 coax cables. All UFP jumper and coax options will support WiFi, LTE, Bluetooth, RFID, GPS and other wireless technologies.

Features and Benefits:

  • Low-profile UFP connectors are 100% compatible with U.FL™ and MHF™ connectors

  • .081mm, 1.13mm, 1.32mm, 1.37mm, 047CC, and RG178 coax options

  • A broad selection of connector options with .047CC and RG178 coax cables

  • Applications: WiFi, LTE, Bluetooth, RFID, GPS and other Wireless Technologies





UFP Part Number Definition

Odoo CMS - a big picture


P1CA-[connector code]-[coax code]-xxx

xxx = length in inches (12 = 12 inches)

xxxCM= length in centimeters (6CM = 6 centimeters)

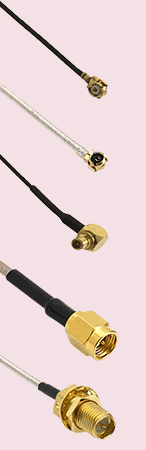

Connector Options


Connector Code

UFP Plug

SMA Male
SMA Female Bulkhead
RP-SMA Female Bulkhead
MCX Plug
Right Angle

MMCX Plug
Right Angle

Other Connectors
UFP Plug
UFPUFP
SAMUFP
SAFBUFP
SARFBUFP
MXPRAUFP
MMPRAUFP
Inquire

Coax Options


Coax Code

Diameter
Impedance
(Ohms)
Max Frequency
(GHz)
Insertion Loss
(at 2.5 GHz)
Velocity of Propagation
Shield
Coverage
047CC

0.047 in. (1.19 mm)

50
6

0.58 dB/ft.

70.0%

100.0%

RG178

0.071 in. (1.80 mm)

50

6

0.62 dB/ft.

65.9%

95.0%

U081

0.031 in. (0.081 mm)

50

6

1.79 dB/ft.

65.9%

90.0%

U113

0.044 in. (1.13 mm)

50

6

1.10 dB/ft.

69.0%

90.0%

U132

0.051 in. (1.32 mm)

50

6

0.96 dB/ft.

69.0%

90.0%

U137

0.053 in. 1.37mm)

50

6

0.79 dB/ft.

65.9%

96.4%

*  U.FL is a trademark of Hirose Electric

** MHF is a trademark of I-PEX
