Ultra Miniature Cable Assemblies

For ultra-miniature flexible cable requirements, P1dB stocks U.FL cable assemblies. The term U.FL is a Hirose trademark for the 2.0mm miniature connector series. Other equivalent connector names are MHF, IPAX and UMC. U.FL cable assemblies are typically mated to a printed circuit board on one end and an external antenna on the other end. These ultra miniature assemblies are 50 Ohm impedance and are capable of operating to a minimum frequency of 6 GHz.

Featuring U.FL, SMA or MMCX connector options, P1dB stocks many common lengths. Custom length assemblies, whether specified in inches or millimeters, can typically be shipped within 3 to 4 weeks.

Evaluation samples are available for many of P1dB's "Ultra Miniature Cable Assemblies".

Contact sales@p1db.com

Cable diameter choices include 0.81 mm, 1.13 mm, 1.32 mm and 1.37 mm flexible coax. Also, P1dB has RG178 and a .047 inch tinned braid conformable cable for customers that need better RF shielding.

Other names for connectors that are 100% compatible with the Hirose U.FL™ are UFP™, MHF™, IPAX and UMC™, to name just of few.

Click Here if you do not find the desiredUltra Miniature Cable Assemblies.

P1CA-SAFBUFP-U113-4
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 4 inches.
11.95 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95
  • 25
    $ 10.67
P1CA-UFLUFL-U137-3
Cable Assembly, U.FL Right Angle Plug to U.FL Right Angle Plug, flex 1.37mm cable, 3 inch.
7.82 7.82 7.82 USD
Pricelist
Min. Qty
Price
  • 10
    $ 7.82
  • 25
    $ 7.58
P1CA-UFLUFL-U137-50MM
Cable Assembly, U.FL Right Angle Plug to U.FL Right Angle Plug, flex 1.37mm cable, 50mm.
7.82 7.82 7.82 USD
Pricelist
Min. Qty
Price
  • 10
    $ 7.82
  • 25
    $ 7.58
P1CA-SAFSAF-020SR-12
Cable Assembly, SMA Female to SMA Female, .020 diameter Semi-Rigid Coax, 12 inches
73.51 73.51 73.51 USD
Pricelist
Min. Qty
Price
  • 1
    $ 73.51
  • 10
    $ 67.39
P1-MMXP/UFL-RG178-12
Flexible cable assembly, MMCX plug (male) to U.FL right angle plug (male), RG178, 12 inch.
12.24 12.24 12.24 USD
Pricelist
Min. Qty
Price
  • 1
    $ 12.24
  • 25
    $ 10.92
P1-MMXP/UFL-RG178-6
Flexible cable assembly, MMCX plug (male) to U.FL right angle plug (male), RG178, 6 inch.
12.24 12.24 12.24 USD
Pricelist
Min. Qty
Price
  • 1
    $ 12.24
  • 25
    $ 10.92
P1CA-SPFRAUFL-RG178-12
Cable Assembly, SMP female right angle to U.FL Right Angle Plug, RG178, 12 inches, measured connector center line to center line.
38.25 38.25 38.25 USD
Pricelist
Min. Qty
Price
  • 1
    $ 38.25
  • 10
    $ 34.98
P1CA-SPFUFL-U137-6
Cable Assembly, SMP female straight to U.FL Right Angle Plug, flex 1.37mm cable, 6 inches.
29.68 29.68 29.68 USD
Pricelist
Min. Qty
Price
  • 1
    $ 29.68
  • 10
    $ 24.47
P1CA-29F29F-034SR-3
2.92mm female to 2.92mm female cable assembly using 0.034 Semi-Rigid Coax, 3 inch.
Operating to 40 GHz with 1.35 typical /1.5 dB maximum VSWR.
92.43 92.43 92.43 USD
Pricelist
Min. Qty
Price
  • 1
    $ 92.43
  • 10
    $ 78.24
P1-MMXP/UFL-RG178-10
Flexible cable assembly, MMCX plug (male) to U.FL right angle plug (male), RG178, 10 inch.
13.76 13.76 13.76 USD
Pricelist
Min. Qty
Price
  • 1
    $ 13.76
  • 25
    $ 11.25
P1CA-SPFUFL-U137-2
Cable Assembly, SMP female straight to U.FL Right Angle Plug, flex 1.37mm cable, 2 inches.
29.68 29.68 29.68 USD
Pricelist
Min. Qty
Price
  • 1
    $ 29.68
  • 10
    $ 24.47
P1CA-SPFRAUFL-RG178-6
Cable Assembly, SMP female right angle to U.FL Right Angle Plug, RG178, 6 inches, measured connector center line to center line.
37.25 37.25 37.25 USD
Pricelist
Min. Qty
Price
  • 1
    $ 37.25
  • 10
    $ 33.98

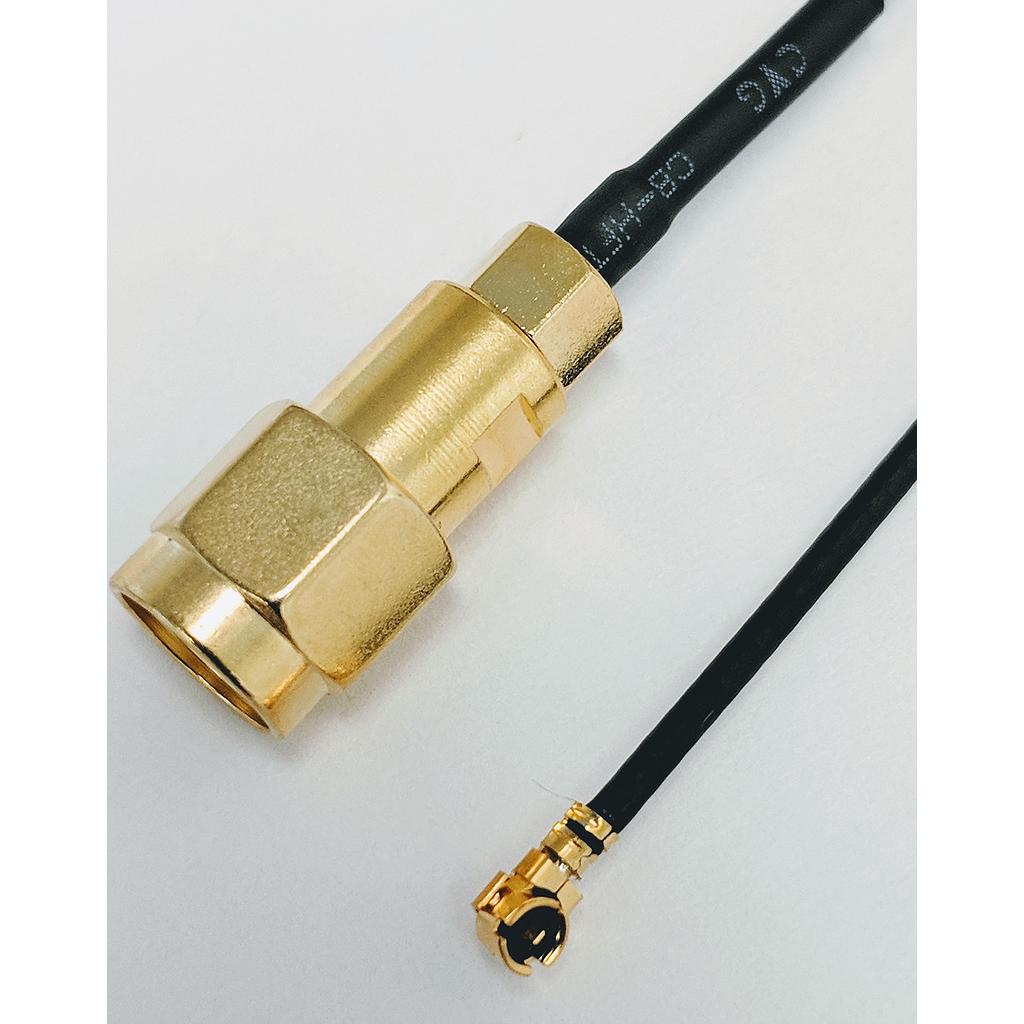

P1CA-SAMUFL-RG178-4
Cable Assembly, SMA Male to U.FL Right Angle Plug, RG178, 4 inches.
9.95 9.95 9.950000000000001 USD
Pricelist
Min. Qty
Price
  • 5
    $ 9.95
  • 10
    $ 9.45
P1CA-SAMUFP-U137-6
Cable Assembly, SMA Male to U.FL Right Angle Plug, Flexible 1.37mm Coax, 6 inch
9.95 9.95 9.950000000000001 USD
P1CA-SAMUFP-U137-9
Cable Assembly, SMA Male to U.FL Right Angle Plug, U137 Coax, 9 inch
9.95 9.95 9.950000000000001 USD
Pricelist
Min. Qty
Price
  • 50
    $ 8.28
  • 100
    $ 7.15
P1CA-SAFSAF-034SR-12
Cable Assembly, SMA Female to SMA Female, .034 Semi-Rigid Coax, 12 inches
25.95 25.95 25.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 25.95
  • 10
    $ 23.45
P1CA-SAFSAF-034SR-3
Cable Assembly, SMA Female to SMA Female, .034 Semi-Rigid Coax, 3 inches
24.95 24.95 24.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 24.95
  • 10
    $ 23.45
P1CA-SAFSAF-020SR-3
Cable Assembly, SMA Female to SMA Female, .020 diameter Semi-Rigid Coax, 3 inches
46.73 46.73 46.730000000000004 USD
Pricelist
Min. Qty
Price
  • 1
    $ 46.73
  • 10
    $ 43.62
P1-SMAJ/SMAJ-020SR-6
Cable Assembly, SMA Female (jack) to SMA Female (jack) , .020 diameter semi-rigid, 6 inch
45.95 45.95 45.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 45.95
  • 10
    $ 40.54
P1CA-SAFBMMCXPRA-1.37MM-6.0
Cable Assembly, SMA Female Bulkhead to MMCX Right Angle Plug, 1.37mm Flexible Coax, 6.0 inches (Length defined from center of MMCX-RA to end of SMA bulkhead connector).
9.28 9.28 9.28 USD
Pricelist
Min. Qty
Price
  • 5
    $ 9.28
  • 10
    $ 8.45
