P1-MMCXP/SMAP-085CJ-10

Hand Formable Cable Assemblies from P1dB

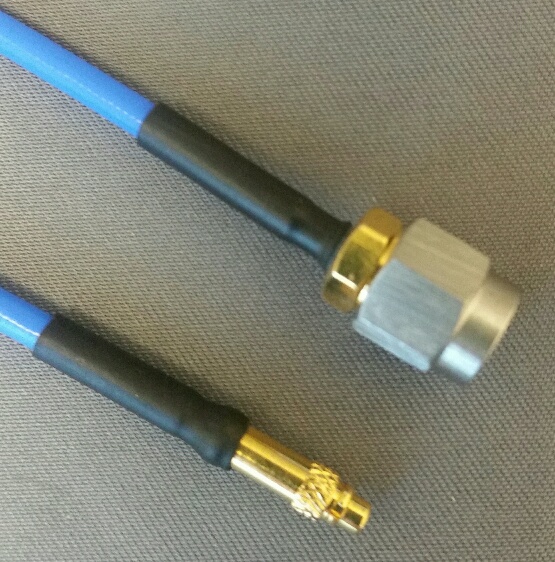

Cable Assembly, MMCX Straight Plug to SMA Male, 085CJ Jacketed Conformable Coax, 10 inches

Specifications
Part Number:
P1-MMCXP/SMAP-085CJ-10
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
MMCX Male
Connector 2:
SMA Male
Cable Type:
085CJ
Cable_Feature:
Conformable, Jacketed
Length (in):
10.0
Outer Diameter (in):
0.1
Max. Frequency (GHz):
3.0

P1-MMCXP/SMAP-085CJ-10 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 10 inch MMCX Plug to SMA Male Conformable cable assembly that utilizes 085CJ conformable coax with a diameter of 0.102inches. The BNC cable assembly operates to 3 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the connector configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

14.95 14.95 14.950000000000001 USD

14.95

Pricelist
Min. Qty
Price
  • 1
    $ 14.95
  • 10
    $ 14.45
Typical Delivery: 28.0 Days
