P1-MMCXP/SMAP-085CJ-11

Hand Formable Cable Assemblies from P1dB

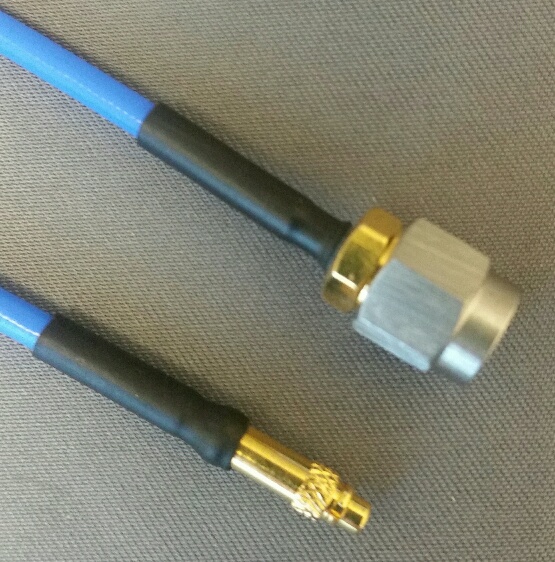

Cable Assembly, MMCX Straight Plug to SMA Male, 085CJ Jacketed Conformable Coax, 11 inches

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1-MMCXP/SMAP-085CJ-11
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
MMCX Male
Connector 2:
SMA Male
Cable Type:
085CJ
Cable_Feature:
Conformable, Jacketed
Length (in):
11.0
Max. Frequency (GHz):
3.0
Outer Diameter (in):
0.1

P1-MMCXP/SMAP-085CJ-11 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is an 11 inch MMCX Plug to SMA Male Conformable cable assembly that utilizes 085CJ conformable coax with a diameter of 0.102inches. The BNC cable assembly operates to 3 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the connector configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

14.95 14.95 14.95 USD

14.95

Pricelist
Min. Qty
Price
  • 1
    $ 14.95
  • 10
    $ 14.45
  • 25
    $ 13.95
In Stock:10.0
