P1-NP/NP-141CJ-48

Hand Formable Cable Assemblies from P1dB

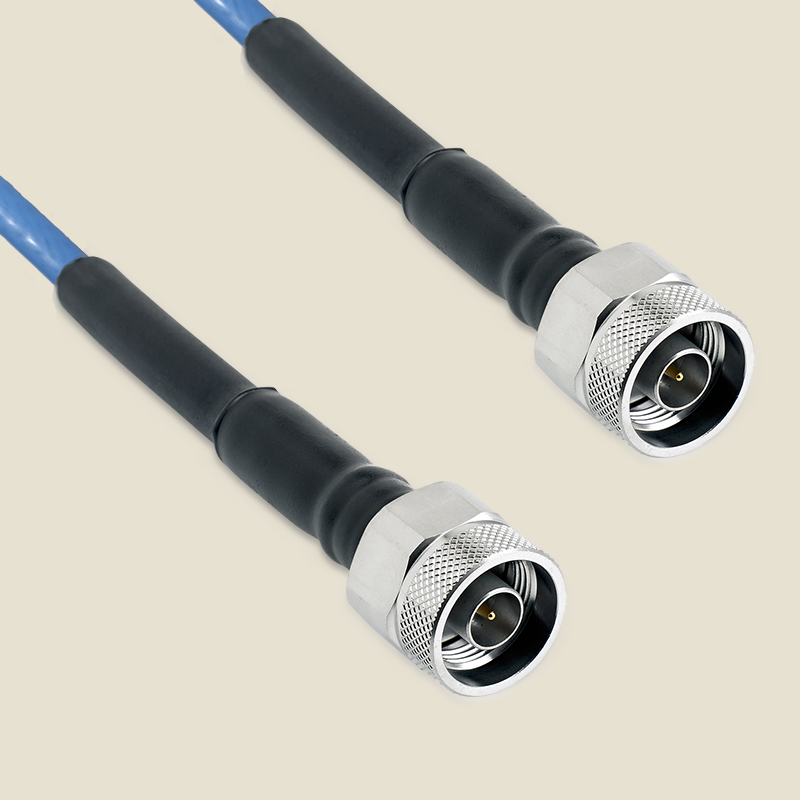

Cable Assembly, N Male to N Male, 141CJ Jacketed Conformable Coax, 48 inches

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1-NP/NP-141CJ-48
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
N Male
Connector 2:
N Male
Cable Type:
141CJ
Cable_Feature:
Conformable, Jacketed
Length (in):
48.0
Max. Frequency (GHz):
10.0
Outer Diameter (in):
0.161

 P1-NP/NP-141CJ-48 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 48 inch  N Plug to N Plug conformable cable assembly using 141CJ conformable coax with a diameter of 0.168 inches. The N cable assembly operates to 10 GHz with a max VSWR of 1.3:1.
YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the connector configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

39.59 39.59 39.59 USD

39.59

Pricelist
Min. Qty
Price
  • 1
    $ 39.59
  • 10
    $ 36.95
In Stock:5.0
