P1-SMAP/SMAPRA-085CJ-28

Hand Formable Cable Assemblies from P1dB

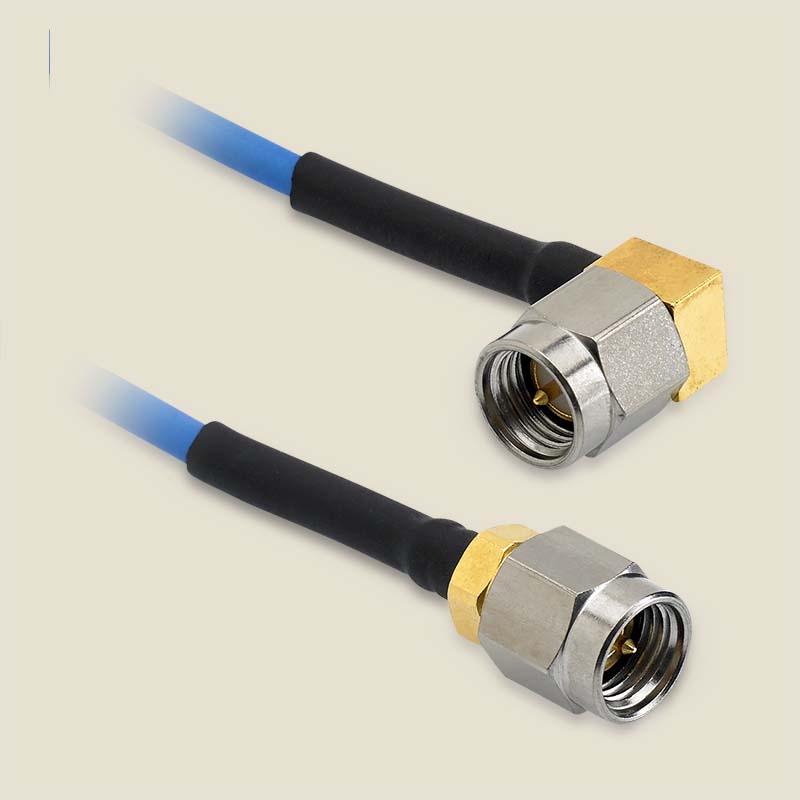

SMA Male to SMA Male Right Angle cable assembly using 085CJ Jacketed Conformable Coax, 28 inch, operating to 18 GHz.

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1-SMAP/SMAPRA-085CJ-28
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male Right Angle
Cable Type:
085CJ
Cable_Feature:
Jacketed Conformable
Length (in):
28.0
Outer Diameter (in):
0.102
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.26
VSWR4:
1.35
IL1:
0.22
IL2:
0.49
IL3:
0.83
IL4:
1.18
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
Shield1:
Tinned Cu/Sn Braid
JacketMat:
FEP
MinBend:
0.38
OpTmpMin:
-85.0
OpTmpMax:
125.0
Qty: in Unit(s)

25.95 25.95 25.95 USD

25.95

Pricelist
Min. Qty
Price
  • 1
    $ 25.95
  • 10
    $ 24.95
Typical Delivery: 28.0 Days
