P1AD-29MF-40G
In-Series Adapters from P1dB

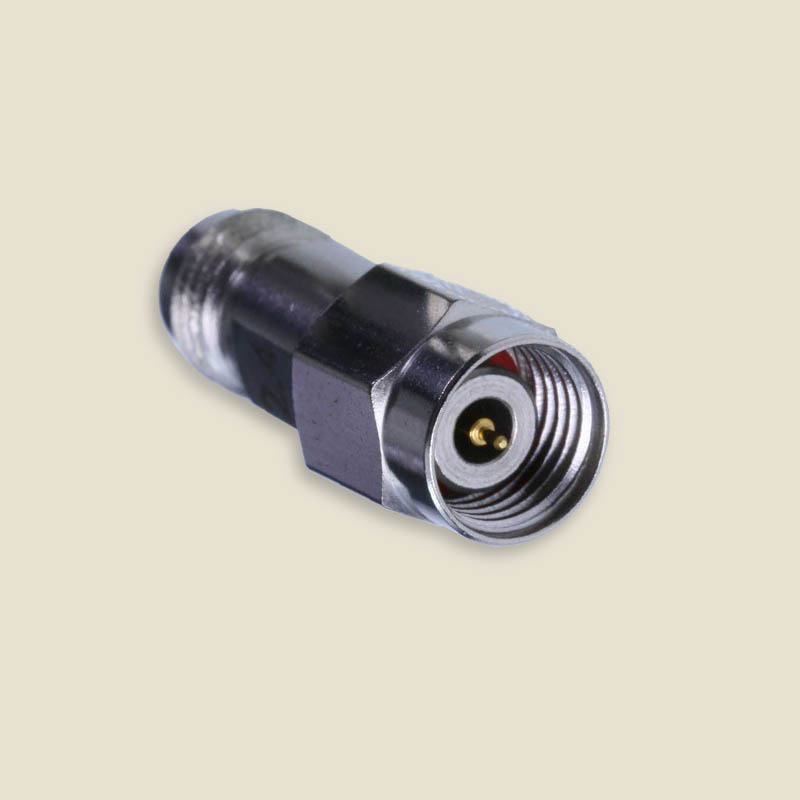

2.92mm Male to 2.92mm Female Straight Adapter Operating to 40 GHz
Specifications |
Part Number:
|
Status:
|
Datasheet:
|
RoHS Compliance:
No
|
Connector 1:
2.92mm Male
|
Connector 2:
2.92mm Female
|
Max. Frequency (GHz):
40.0
|
Data.F1:
40.0
|
VSWR1:
1.25
|
ConnNut1:
Stainless Steel
|
ConnBody1:
Stainless Steel
|
ConnContact1:
Gold Plated Brass
|
ConnNut2:
Stainless Steel
|
ConnBody2:
Stainless Steel
|
ConnContact2:
Gold Plated Beryllium Copper
|
OpTmpMin:
-85.0
|
OpTmpMax:
125.0
|
Angle:
Straight
|
Mount:
None
|
Feature:
None
|
Impedance:
50.0
|
Qty:
in Unit(s)
