P1CA-10F10M-F047-12
High Frequency Cables from P1dB

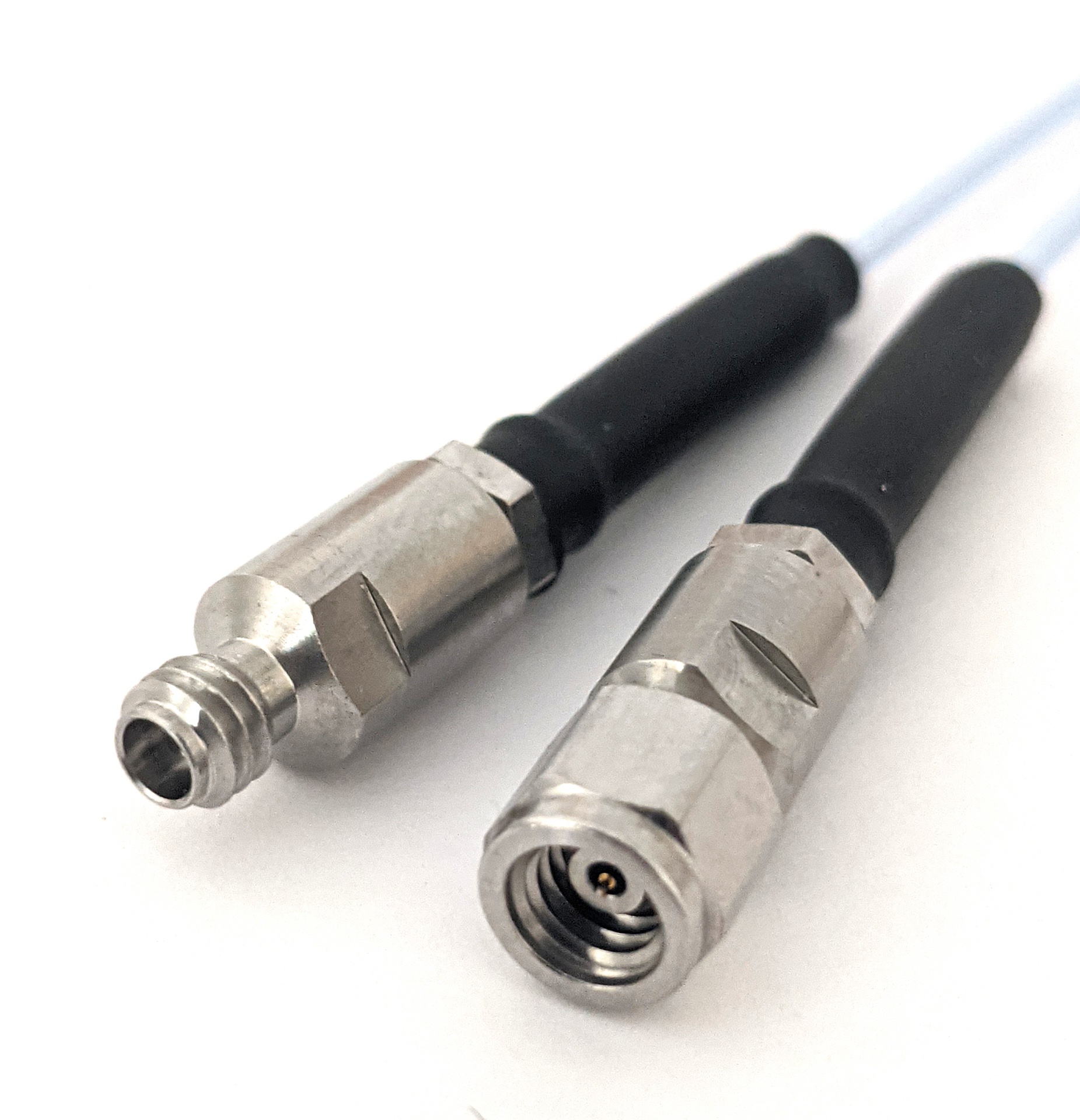

Flexible cable assembly, 1.0mm female to 1.0mm male, F047 cable, 12 inch. Frequency DC to 110 GHz. VSWR 1.45 max.
| Specifications |
|
Part Number:
P1CA-10F10M-F047-12
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
1.0mm female
|
|
Connector 2:
1.0mm male
|
|
Cable Type:
F047
|
|
Length (in):
12.0
|
|
Max. Frequency (GHz):
110 GHz
|
|
Max VSWR:
1.45 to 110 GHz
|
P1CA-10F10M-F047-12 is a 50 Ohm RF cable assembly, 1.0mm female to 1.0 male using F047 flex cable, 12 inch.
The frequency range is DC to 110 GHz with a mx VSWR 1.35. Insertion Loss for the 12 inch assembly is 5.25dB max to 110 GHz.
