P1CA-24M24M-085CJ-10
Hand Formable Cable Assemblies from P1dB

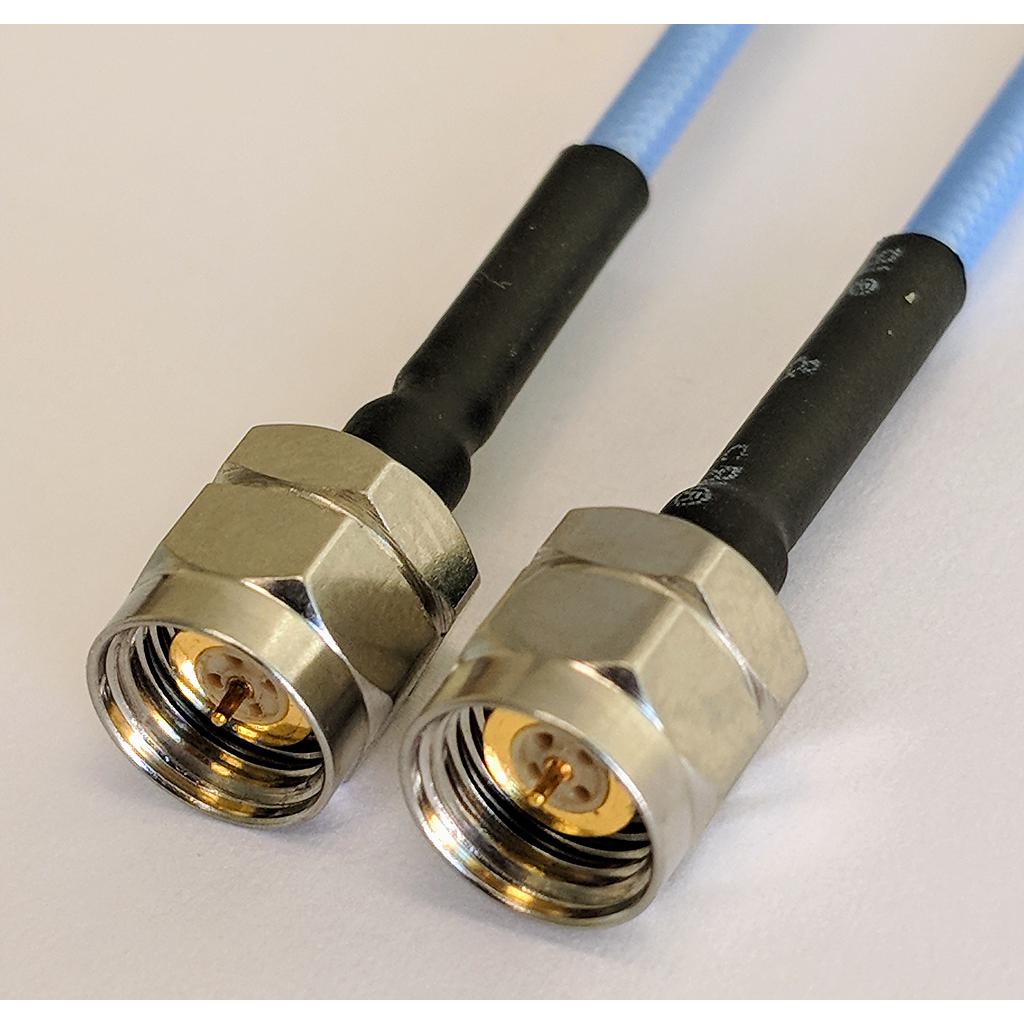

2.4mm Male to 2.4mm Male RF flex cable using Flexiform 085 hand formable cable, 10 inches long, Operating to 50 GHz.
| Specifications |
|
Part Number:
P1CA-24M24M-085CJ-10
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
2.4mm Male
|
|
Connector 2:
2.4mm Male
|
|
Cable Type:
Flexiform 085
|
|
Cable_Feature:
Hand Formable
|
|
Length (in):
10.0
|
|
Outer Diameter (in):
0.104
|
|
Max. Frequency (GHz):
50.0 GHz
|
|
Data.F1:
1.0
|
|
Data.F2:
18.0
|
|
Data.F3:
30.0
|
|
Data.F4:
50.0
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.35
|
|
VSWR4:
1.45
|
|
IL1:
0.2
|
|
IL2:
1.3
|
|
IL3:
1.5
|
|
IL4:
1.95
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Beryllium Copper
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Passivated Stainless Steel
|
|
ConnContact2:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPC
|
|
Dielectric Material:
PTFE
|
|
Shield2:
SPC Braid
|
|
JacketMat:
FEP
|
|
MinBend:
0.25
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
P1dB's RF cable assembly P1CA-24M24M-085CJ-10 is a 50 Ohm hand formable cable 10 inches long with an outer diameter of 0.104 inch. It has 2.4 mm male connectors. Frequency DC to 50 GHz with a typcial VSWR of 1.40 (1.45 maximum). The cable has a bend radius of 0.25 inch and a Velocity of Propagation of 70%. Typical Insertion Loss measures 1.2 dB/ft at 18 GHz and 1.8 dB/ft at 40 GHz.P1CA-24M24M-085CJ-12 is a hand formable high frequency cable assembly with good phase and amplitude stability for general purpose test applications.
