P1CA-BNMBNM-085CJ-24
Hand Formable Cable Assemblies from P1dB
Cable Assembly, BNC Male to BNC Male, .085 conformable jacketed, 24 inches
| Specifications |
|
Part Number:
P1CA-BNMBNM-085CJ-24
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
BNC Male
|
|
Connector 2:
BNC Male
|
|
Cable Type:
085CJ
|
|
Cable_Feature:
Conformable, Jacketed
|
|
Length (in):
24.0
|
|
Outer Diameter (in):
0.105
|
|
Max. Frequency (GHz):
3.0
|

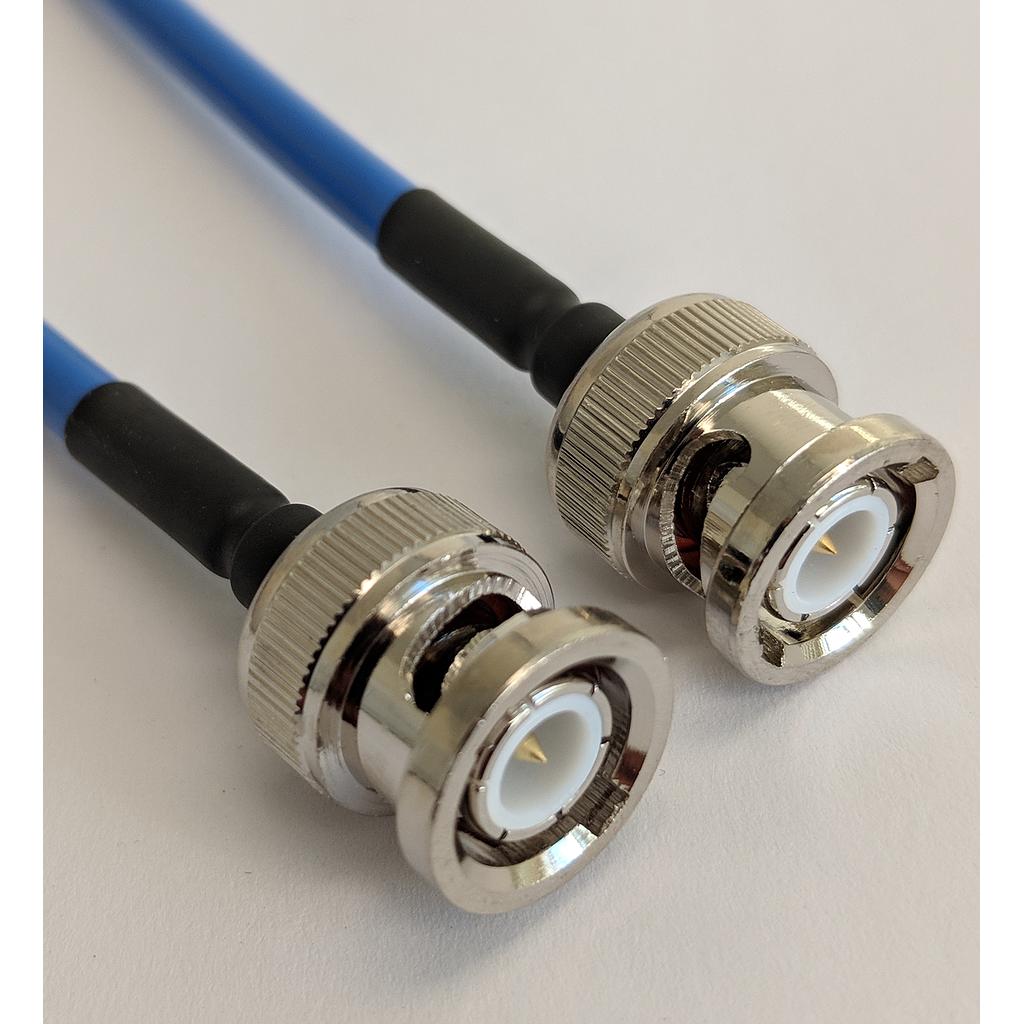

P1CA-BNMBNM-085CJ-24 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 24 inch BNC Plug to BNC Plug Conformable cable assembly that utilizes .085CJ conformable coax with a diameter of 0.102 inches. The BNC cable assembly operates to 3 GHz with a max VSWR of 1.35:1.
YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the connector configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.
