P1CA-SAMBNM-085CJ-48

Hand Formable Cable Assemblies from P1dB

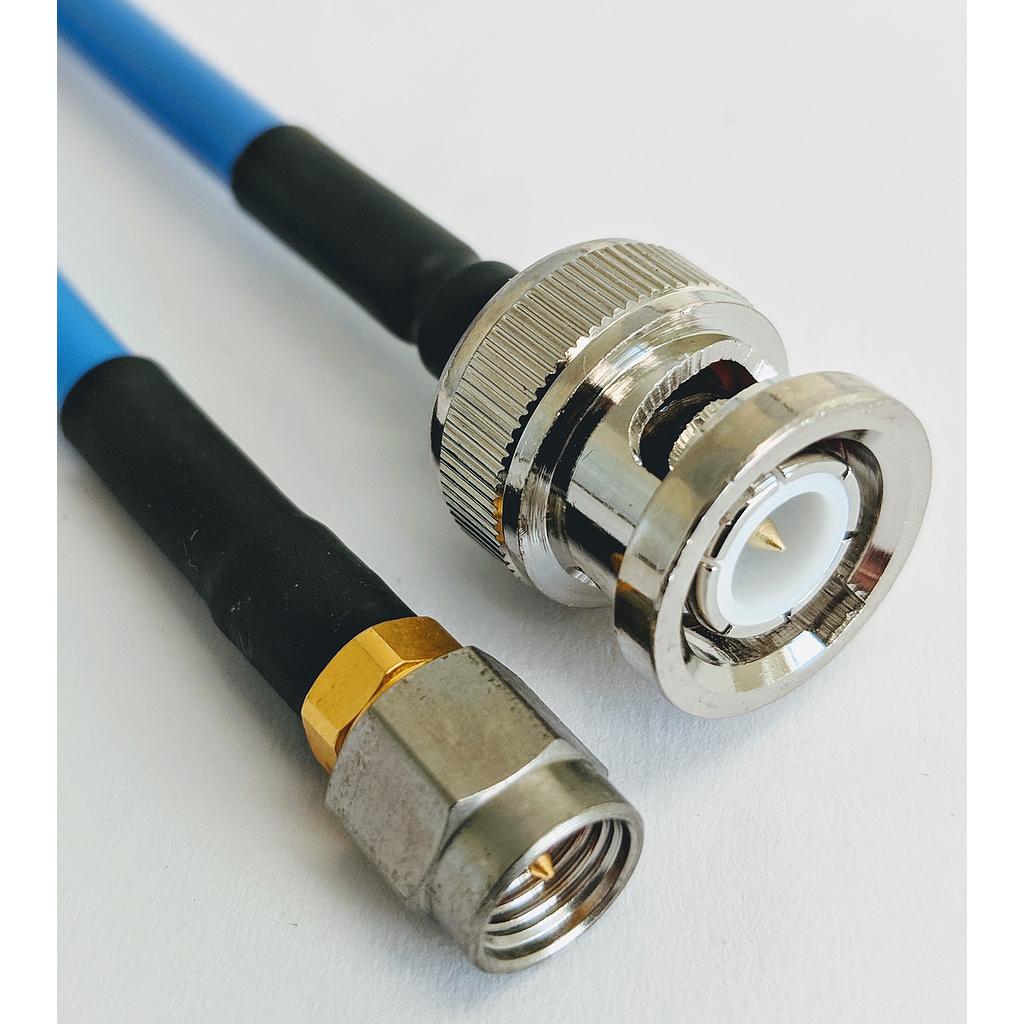

Cable Assembly, SMA Male to BNC Male, 085CJ Conformable Coax, 48 inches

Specifications
Part Number:
P1CA-SAMBNM-085CJ-48
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
BNC Male
Cable Type:
085CJ
Cable_Feature:
Conformable
Length (in):
48.0
Outer Diameter (in):
0.102
Max. Frequency (GHz):
3.0

P1CA-SAMBNM-085CJ-48 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 48 inch SMA Male to BNC Plug Conformable cable assembly that utilizes .085CJ conformable coax with a diameter of 0.102 inches. The BNC cable assembly operates to 3 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the connector configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

28.95 28.95 28.95 USD

28.95

Pricelist
Min. Qty
Price
  • 1
    $ 28.95
  • 10
    $ 25.45
In Stock:25.0
