P1CA-SAMRASAMRA-141CC-24
Hand Formable Cable Assemblies from P1dB

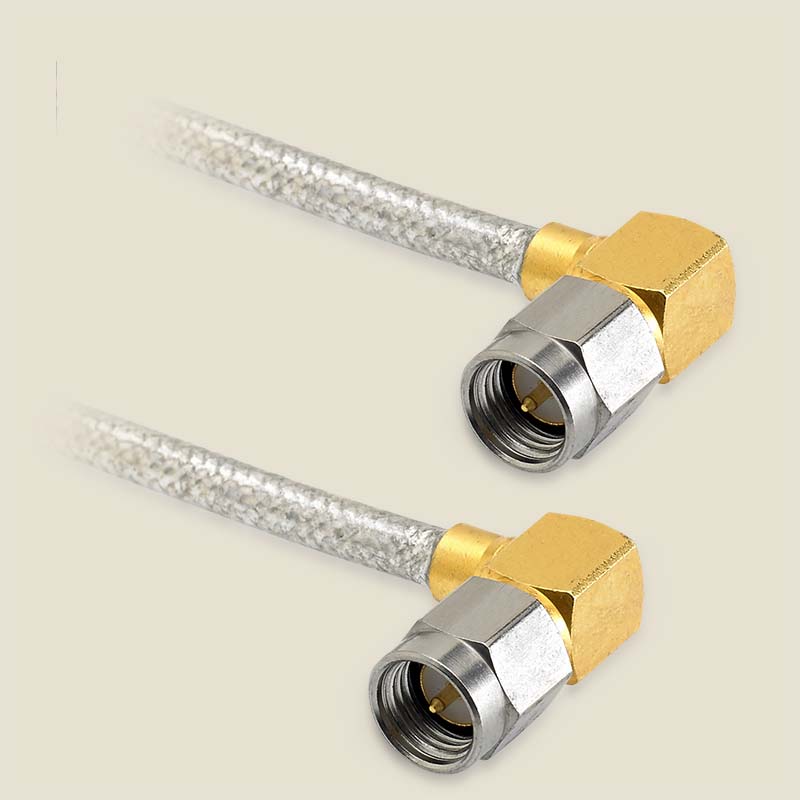

SMA Male Right Angle to SMA Male Right Angle cable assembly using 141CC Conformable Coax, 24 inches long, Operating to 18 GHz.
| Specifications |
|
Part Number:
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
No
|
|
Connector 1:
SMA Male Right Angle
|
|
Connector 2:
SMA Male Right Angle
|
|
Cable Type:
141CC
|
|
Cable_Feature:
Conformable
|
|
Length (in):
24.0
|
|
Outer Diameter (in):
0.141
|
|
Max. Frequency (GHz):
18.0
|
|
Data.F1:
1.0
|
|
Data.F2:
5.0
|
|
Data.F3:
10.0
|
|
Data.F4:
18.0
|
|
VSWR1:
1.1
|
|
VSWR2:
1.1
|
|
VSWR3:
1.12
|
|
VSWR4:
1.15
|
|
IL1:
0.12
|
|
IL2:
0.3
|
|
IL3:
0.45
|
|
IL4:
0.65
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Gold Plated Brass
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.38
|
|
OpTmpMin:
-85.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
Tinned Cu/Sn Braid
|
Qty:
in Unit(s)
