P1CA-SAMSAM-141CC-96

Hand Formable Cable Assemblies from P1dB

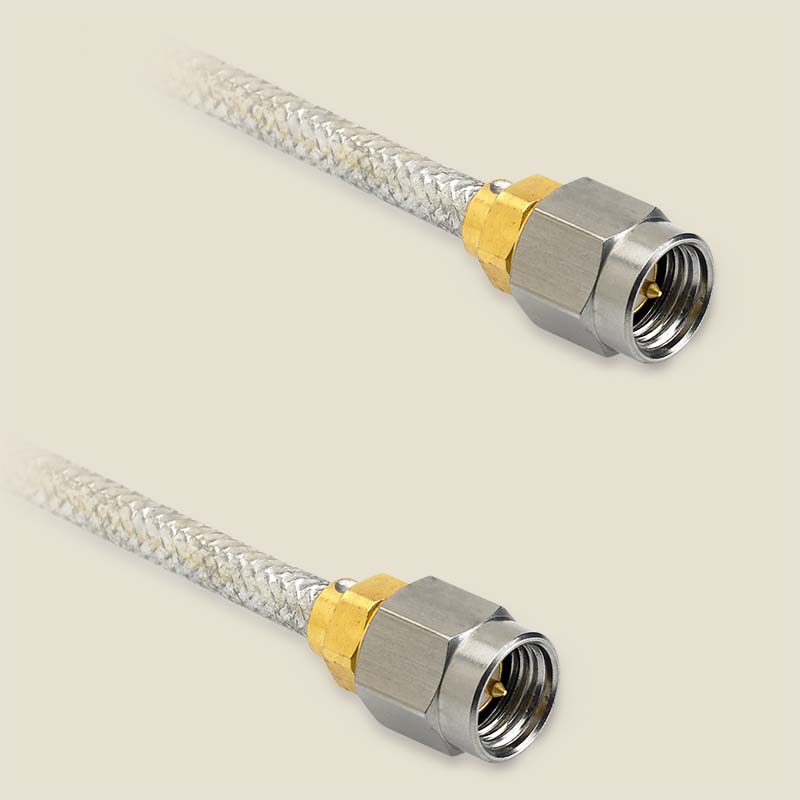

SMA Male to SMA Male cable assembly using 141CC Conformable Coax, 96 inches long, Operating to 18 GHz.

Specifications
Part Number:
P1CA-SAMSAM-141CC-96
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
141CC
Cable_Feature:
Conformable
Length (in):
96.0
Outer Diameter (in):
0.141
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.1
VSWR2:
1.1
VSWR3:
1.12
VSWR4:
1.15
IL1:
0.12
IL2:
0.31
IL3:
0.45
IL4:
0.65
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.38
OpTmpMin:
-85.0
OpTmpMax:
200.0
Shield1:
Tinned Cu/Sn Braid

P1CA-SAMSAM-141CC-96 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 96 inch SMA Male to SMA Male Conformable cable assembly that utilizes 141CC conformable coax with a diameter of 0.141 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.15:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.
