P1CO-SAF4-FE018-27G
SMA Connectors from P1dB

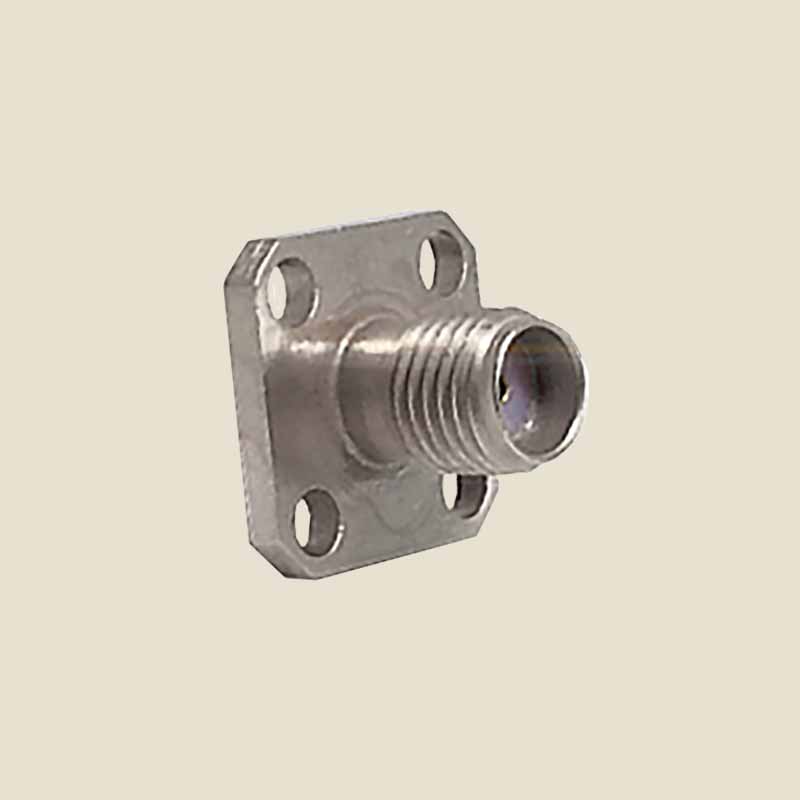

Connector, SMA Female, 4-Hole Panel Mount, Field Replaceable with EMI Gasket, Socket for .018 Pin, 27 GHz
| Specifications |
|
Part Number:
P1CO-SAF4-FE018-27G
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Max. Frequency (GHz):
27.0
|
|
Connector Type:
SMA
|
|
Impedance (Ohms):
50.0
|
|
Gender:
Female
|
|
Orientation:
Straight
|
|
Mounting Style:
4-Hole Flange
|
|
Termination Style:
Socket
|
|
Termination Type:
Field Replace Socket .018
|
|
Outer Body Plating:
Passivated Stainless Steel
|
|
Inner Contact Plating:
Gold
|
P1dB's P1CO-SAF4-FE018-27G is an SMA female 4 hole flange mount connector that mates with a 0.018 inch diameter Pin. This field replaceable SMA connector is designed to operate to 27 GHz with a maximum VSWR of 1.20. The SMA connector body is passivated stainless steel.
The P1CO-SAF2-FE018-27G is part of P1dB's family of field replaceable SMA connectors, available in a variety of 2 and 4 hole flange mount configurations.
