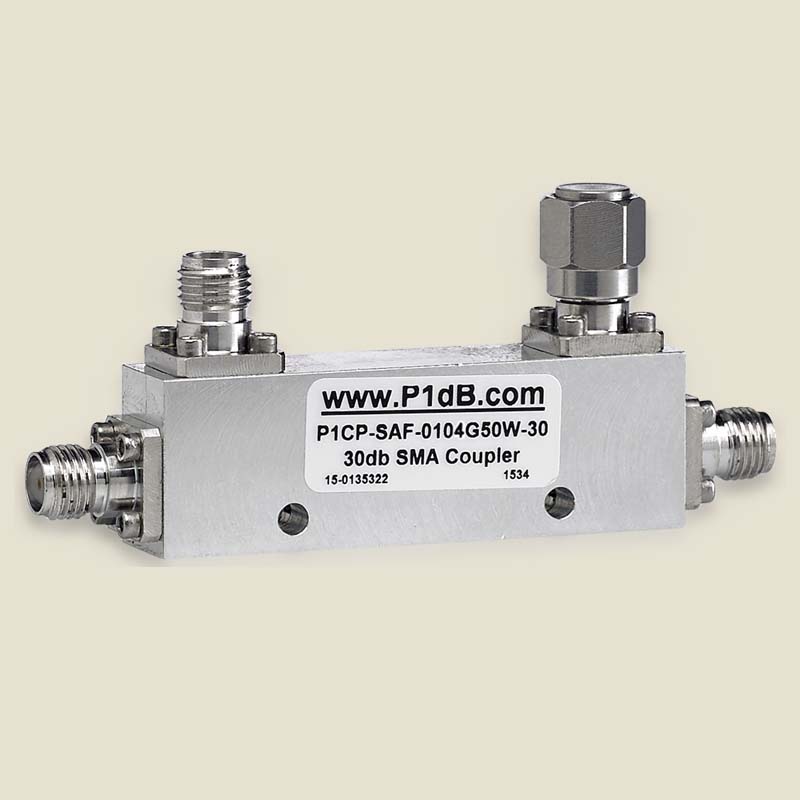

P1CP-SAF-0104G50W-30
30 dB Couplers from P1dB
RF coaxial 30 dB Directional Coupler, frequency range 1 GHz to 4 GHz. Power up to 30 Watts with SMA female connectors. Limited to stock on hand.
| Specifications |
|
Part Number:
P1CP-SAF-0104G50W-30
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Coupler Type:
Directional
|
|
Coupling (dB):
30.0
|
|
Frequency Min (MHz):
1000.0
|
|
Frequency Max (MHz):
4000.0
|
|
Power Handling (W):
50.0
|
|
Insertion Loss (dB):
0.4
|
|
Isolation (dB):
21.0
|
|
Amplitude Imbalance (dB):
0.5
|
|
Connectors:
SMA
|
|
Directivity (dB):
20.0
|
|
Typ. Input VSWR:
1.25:1
|
|
Typ. Output VSWR:
1.25:1
|
Qty:
in Unit(s)
