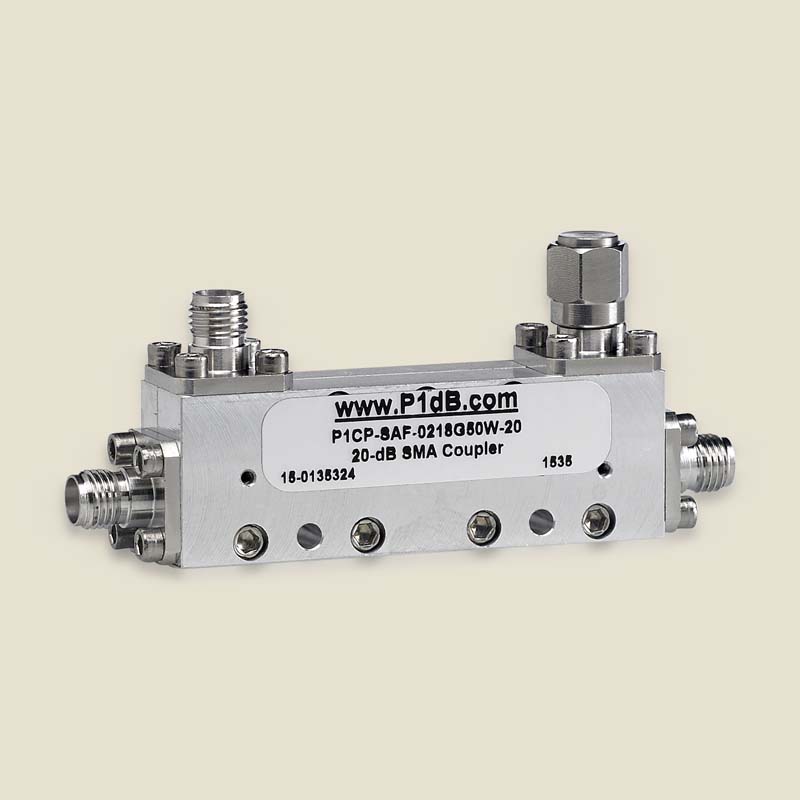

P1CP-SAF-0218G50W-20
20 dB Couplers from P1dB
20 dB Directional Coupler Operating from 2 to 18 GHz. Power handling 50 Watts, SMA female. Limited to stock on hand.
| Specifications |
|
Part Number:
P1CP-SAF-0218G50W-20
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
No
|
|
Coupler Type:
Directional
|
|
Coupling (dB):
20.0
|
|
Frequency Min (MHz):
2000.0
|
|
Frequency Max (MHz):
18000.0
|
|
Power Handling (W):
50.0
|
|
Insertion Loss (dB):
0.9
|
|
Isolation (dB):
12.0
|
|
Amplitude Imbalance (dB):
0.5
|
|
Connectors:
SMA
|
|
Directivity (dB):
15.0
|
|
Typ. Input VSWR:
1.35:1
|
|
Typ. Output VSWR:
1.35:1
|
