P1CP-SAF-0716G50W-20

20 dB Couplers from P1dB

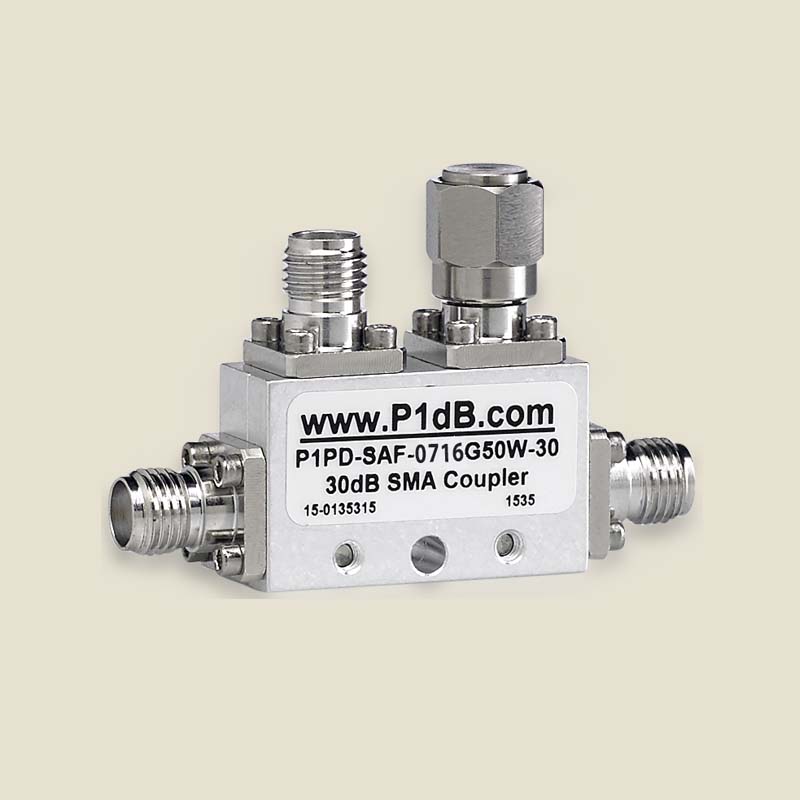

Coaxial RF 20 dB Directional Coupler, frequency band 7.5 to 16 GHz. Power up to 50 Watts with SMA female connectors. Limited to stock on hand.

Specifications
Part Number:
P1CP-SAF-0716G50W-20
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Coupler Type:
Directional
Coupling (dB):
20.0
Frequency Min (MHz):
7500.0
Frequency Max (MHz):
16000.0
Power Handling (W):
50.0
Insertion Loss (dB):
0.5
Isolation (dB):
15.0
Amplitude Imbalance (dB):
0.75
Connectors:
SMA
Directivity (dB):
17.0
Typ. Input VSWR:
1.35:1
Typ. Output VSWR:
1.35:1

P1CP-SAF-0716G50W-20 is a 50 Ohm RF coaxial coupler for the frequency band 7.5 GHz to 16 GHz. The coupler has SMA female (jack)  connectors and can handle input power up to 50 Watts.  Directivity is 17 dB. Flatness is 0.75 dB and Insertion Loss is 1.0 dB. VSWR is 1.35 max.  The coupler body is 0.55 inch height x 1.0 inch length.
