P1CP-SAF-R518G30W-30
30 dB Couplers from P1dB

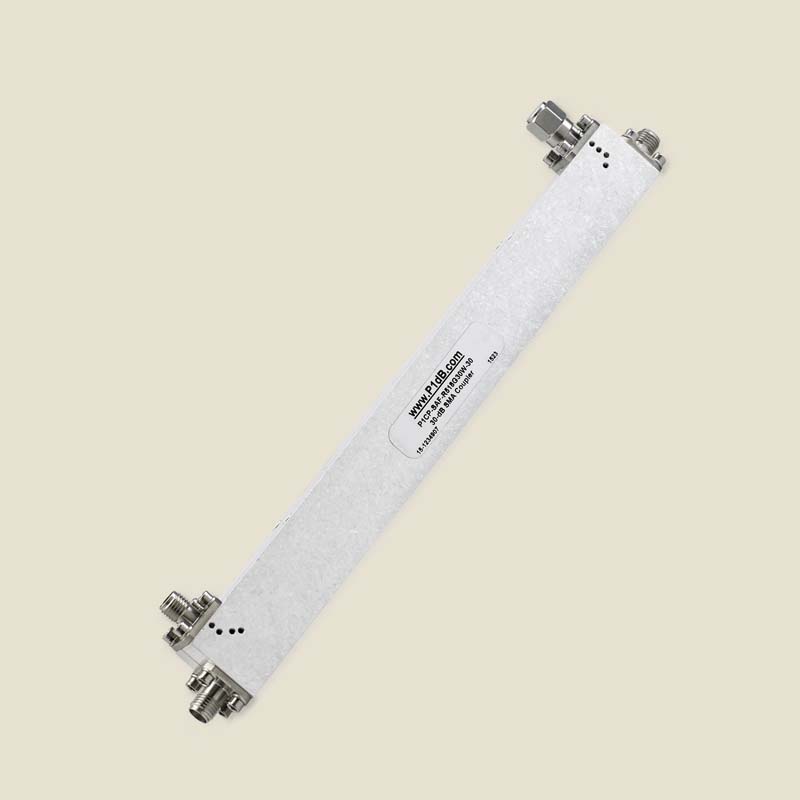

Coaxial RF 30 dB Directional Coupler, frequency band 500 MHz to 18 GHz. Power up to 30 Watts with SMA female connectors. Limited to stock on hand.
| Specifications |
|
Part Number:
P1CP-SAF-R518G30W-30
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Coupler Type:
Directional
|
|
Coupling (dB):
30.0
|
|
Frequency Min (MHz):
500.0
|
|
Frequency Max (MHz):
18000.0
|
|
Power Handling (W):
30.0
|
|
Insertion Loss (dB):
1.5
|
|
Isolation (dB):
12.0
|
|
Amplitude Imbalance (dB):
0.75
|
|
Connectors:
SMA
|
|
Directivity (dB):
20.0
|
|
Typ. Input VSWR:
1.4:1
|
|
Typ. Output VSWR:
1.3:1
|
Qty:
in Unit(s)
