P1DB-SMAJ-BLKHD
SMA Connectors from P1dB

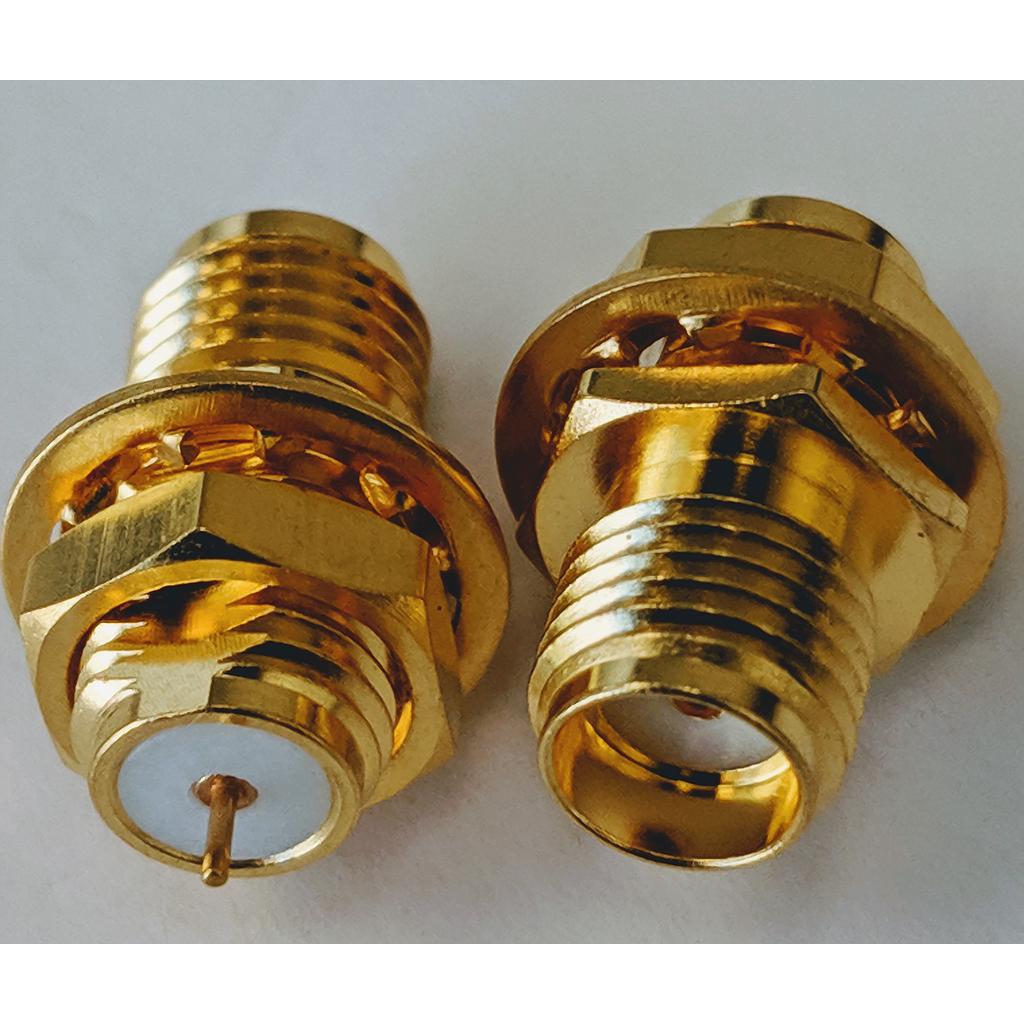

SMA Female Bulkhead Connector with .050 inch diameter contact pin. Frequency DC to 18 GHz with a max VSWR 1.20.
| Specifications |
|
Part Number:
P1DB-SMAJ-BLKHD
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Frequency Max (GHz):
18.0
|
|
Connector Type:
SMA
|
|
Impedance (Ohms):
50.0
|
|
Gender:
Female
|
|
Orientation:
Straight
|
|
Mounting Style:
Bulkhead
|
|
Termination Style:
Solder
|
|
Termination Type:
Solder Pin .050
|
|
Outer Body Plating:
Gold
|
|
Inner Contact Plating:
Gold
|
P1dB's P1DB-SMAJ-BLKHD is a 50 Ohm RF connector, SMA female (jack) for bulkhead mount. The connector body is gold plated brass and overall length is 0.610 inch (15.5mm). The center contact is 0.020 inch (0.5mm) diameter and is 0.079 inch (2mm) long.
Frequency range is DC to 18 GHz.
VSWR max is 1.2.
