P1PD-29F-DC40G1W-2
2-Way Power Dividers from P1dB

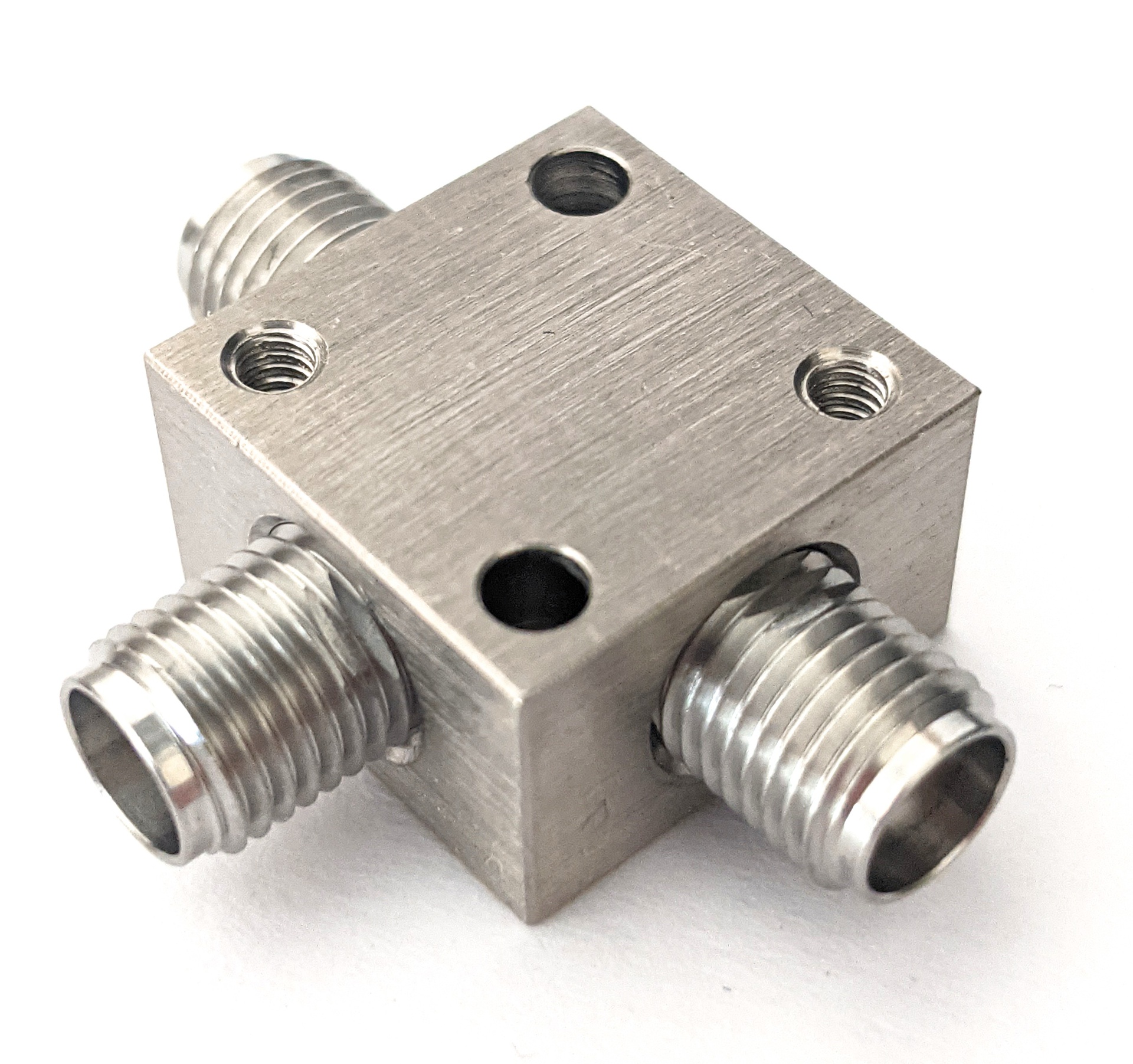

Power Divider, Resistive, DC to 40 GHz, 2-Way, 1 Watt, 2.92mm female connectors. Case measures 0.6 x 0.6 x 0.4 inch.
| Specifications |
|
Part Number:
P1PD-29F-DC40G1W-2
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Frequency Max (GHz):
40.0
|
|
Power Handling (W):
Power Handling (W): 1.0
|
|
Insertion Loss (dB):
6 dB
|
|
Connectors:
2.92mm
|
|
Ports:
3
|
P1dB's ultra-broadband DC to 40GHz Power Splitter is a 3-port device with 2.92mm female connectors. Power division between any input and either output. Insertion Loss, Input port measured to either Output port, is 6dB typical. This broadband 2-way divider operates from DC up to 40 GHz. Power handling is 1 Watt CW. Amplitude stability is 0.3 dB max DC -40 GHz.
Temperature range is -55 to +125 degrees C.
Housing dimensions: 0.6 x 0.6 x 0.4 inches. Mounting holes 0.4 inch center-to center.
