    P1CO-29F2-F012

    P1CO-29F2-F012

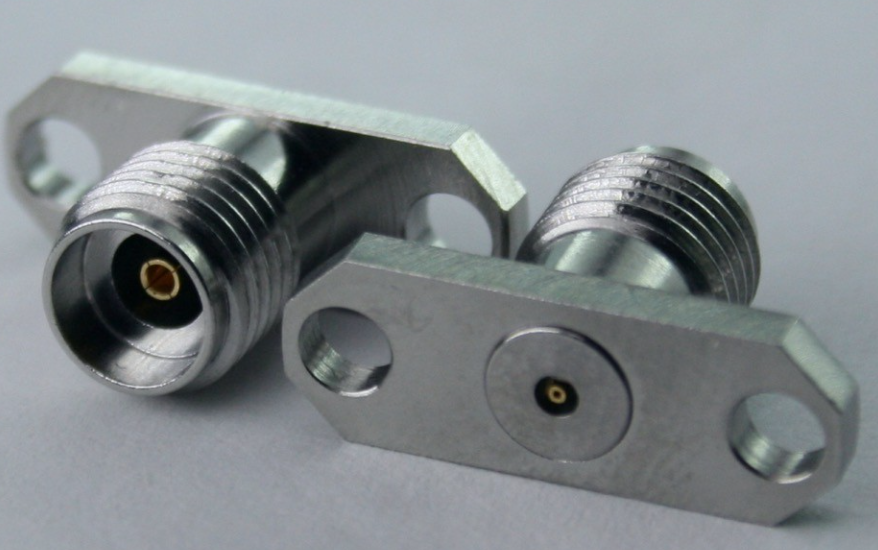

    Connector, 2.92mm Female, 2-Hole Panel Mount, Field Replaceable, Socket for .012 Pin.
    Frequency DC to 40 GHz. VSWR 1.20 max to 40 GHz.

    $ 29.95 $ 29.95

    • Max. Frequency (GHz)
    • Connector Type
    • Impedance (Ohms)
    • Gender
    • Orientation
    • Mounting Style
    • Termination Type
    • Outer Body Plating
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Max. Frequency (GHz): 40.0
    Connector Type: 2.92mm
    Impedance (Ohms): 50.0
    Gender: Female
    Orientation: Straight
    Mounting Style: 2-Hole Flange
    Termination Type: Field Replace Socket .012
    Outer Body Plating: Passivated Stainless Steel
