    P1CO-29M2-F012

    P1CO-29M2-F012

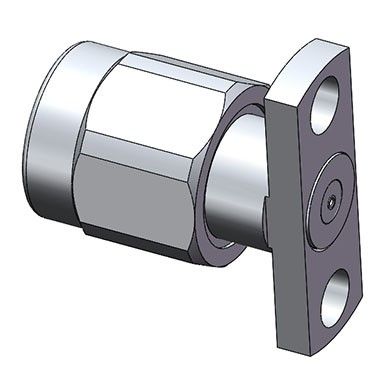

    Connector, 2.92mm Male, 2-Hole Panel Mount, Field Replaceable, Socket for .012 Pin, Operating to 40 GHz

    $ 32.95 $ 32.95

    • Max. Frequency (GHz)
    • Max VSWR
    • Connector Type
    • Impedance (Ohms)
    • Gender
    • Orientation
    • Mounting Style
    • Termination Style
    • Termination Type
    • Outer Body Plating
    • Inner Contact Plating
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Max. Frequency (GHz): 40.0
    Max VSWR: 1.15:1
    Connector Type: 2.92mm
    Impedance (Ohms): 50.0
    Gender: Male
    Orientation: Straight
    Mounting Style: 2-Hole Flange
    Termination Style: Socket
    Termination Type: Field Replace Socket .012
    Outer Body Plating: Passivated Stainless Steel
    Inner Contact Plating: Gold
