    P1CO-SAF4-FE015-27G

    P1CO-SAF4-FE015-27G

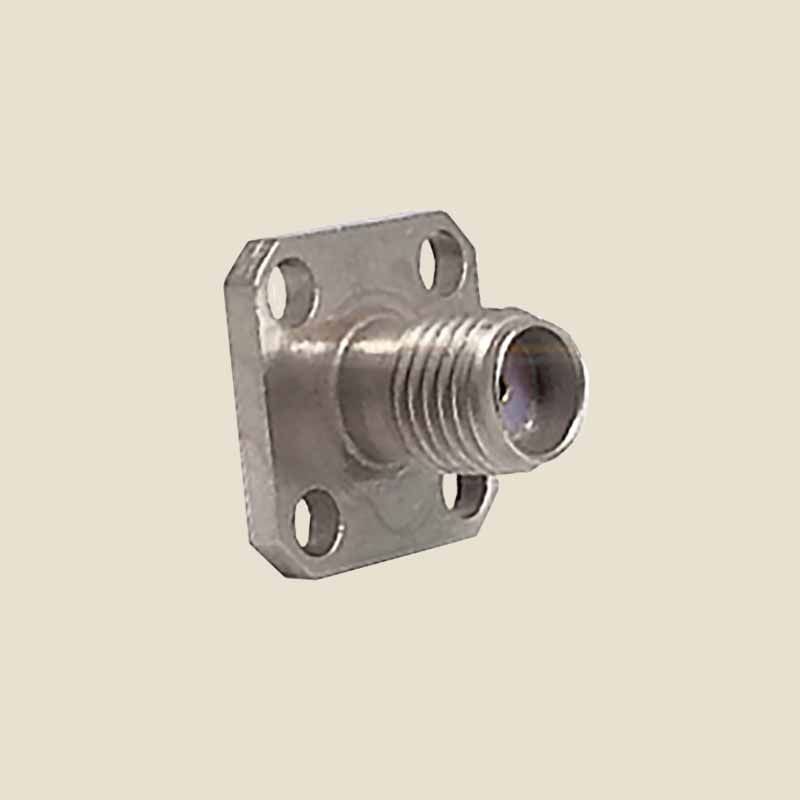

    Connector, SMA Female, 4-Hole Panel Mount, Field Replaceable with raised metal ring to reduce RF leakage.
    Mates with a .015 inch pin. Frequency DC to 27 GHz with a 1.15 max VSWR.

    $ 14.95 $ 14.95

    • Max. Frequency (GHz)
    • Connector Type
    • Impedance (Ohms)
    • Gender
    • Orientation
    • Mounting Style
    • Termination Style
    • Termination Type
    • Outer Body Plating
    • Inner Contact Plating
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Max. Frequency (GHz): 27.0
    Connector Type: SMA
    Impedance (Ohms): 50.0
    Gender: Female
    Orientation: Straight
    Mounting Style: 4-Hole Flange
    Termination Style: Socket
    Termination Type: Field Replace Socket .015
    Outer Body Plating: Passivated Stainless Steel
    Inner Contact Plating: Gold
