P1CB-010-070-CUSP-F
RF Cable, 10 Ohms, 0.07 inch, Bare Copper outer conductor.
Priced and shipped in 1 meter lengths.
$ 18.60 $ 18.60 18.6 USD
Pricelist
Min. Qty
Price
  • 1
    $ 18.6
Outer Diameter (in)
0.07
Dielectric Material
FEP
Impedance (Ohms)
10.00
Inner Conductor Material
SPC
Outer Jacket Material
Copper
P1TR-SAM-6G1W
RF Termination, SMA Male, 1 Watt, 6 GHz.
Limited to stock on hand.
$ 9.55 $ 9.55 9.55 USD
Length (in)
0.58
Max VSWR
1.15:1
Avg. Power (W)
1.0
Connector
SMA Male
Max Frequency (GHz)
6.0
P1TR-TNM-18G2W
RF Termination, TNC Male, 2 Watts, 18 GHz.
Limited to stock on hand.
$ 32.95 $ 32.95 32.95 USD
Length (in)
0.77
Max VSWR
1.2:1
Avg. Power (W)
2.0
Connector
TNC Male
Max Frequency (GHz)
18.0

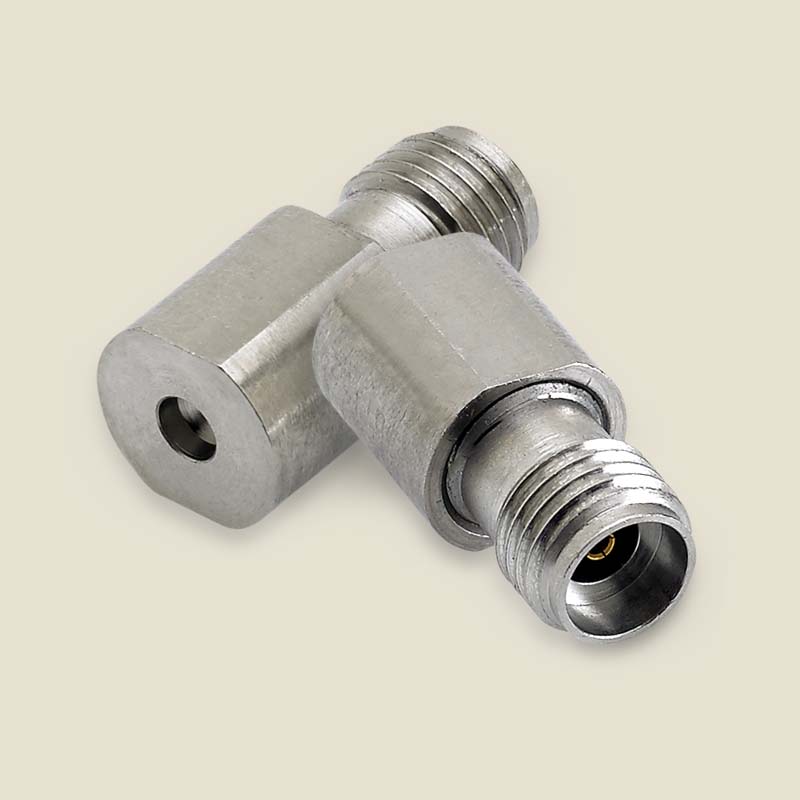

P1TR-24F-50G1W
RF Termination, 2.4 mm Female, 1 Watt, 50 GHz.
$ 191.58 $ 191.58 191.58 USD
Pricelist
Min. Qty
Price
  • 1
    $ 191.58
Length (in)
0.67
Max VSWR
1.25 Max DC-40GHz; 1.30 Max 40-50GHz
Avg. Power (W)
1.0
Connector
2.4mm Female
P1TR-18M-65G1W
RF Termination, 1.85 mm Male, 1 Watt, DC to 65 GHz.
$ 318.95 $ 318.95 318.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 318.95
Length (in)
0.66
Max VSWR
1.45 to 65 GHz
Avg. Power (W)
1.0
Connector
1.85mm Male
Max Frequency (GHz)
65.0

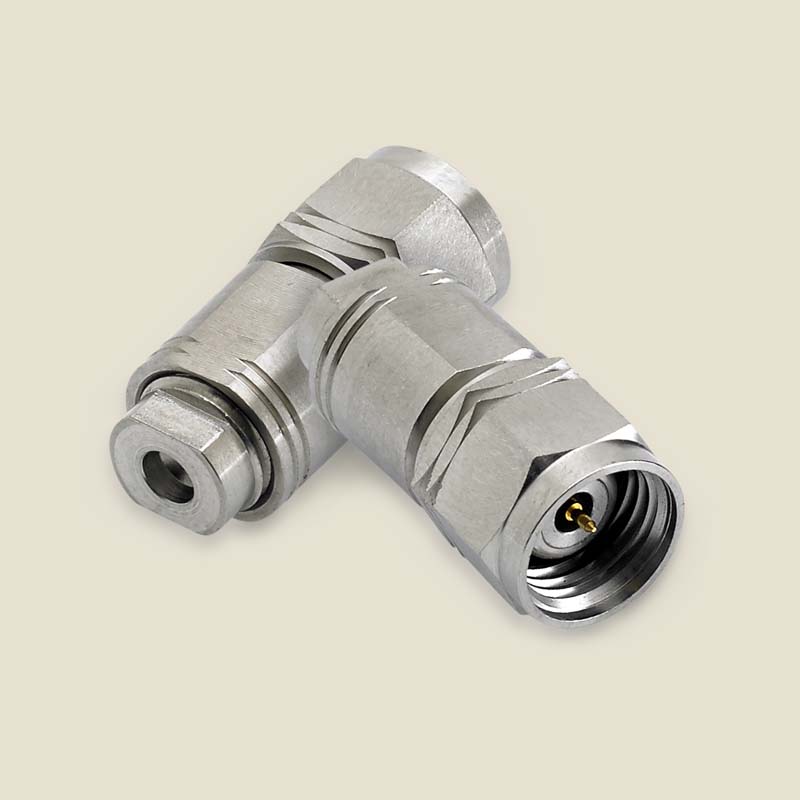

P1TR-24M-50G1W
RF Termination, 2.4mm Male, 1 Watts, 50 GHz
$ 167.79 $ 167.79 167.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 167.79
Length (in)
0.67
Max VSWR
1.45:1
Avg. Power (W)
1.0
Connector
2.4mm Male
Max Frequency (GHz)
50.0
P1TR-29F-40G2W
RF Termination, 2.92mm Female, 2 Watts, 40 GHz
$ 124.89 $ 124.89 124.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 124.89
Length (in)
0.61
Max VSWR
1.25:1
Avg. Power (W)
2.0
Connector
2.92mm Female
Max Frequency (GHz)
40.0

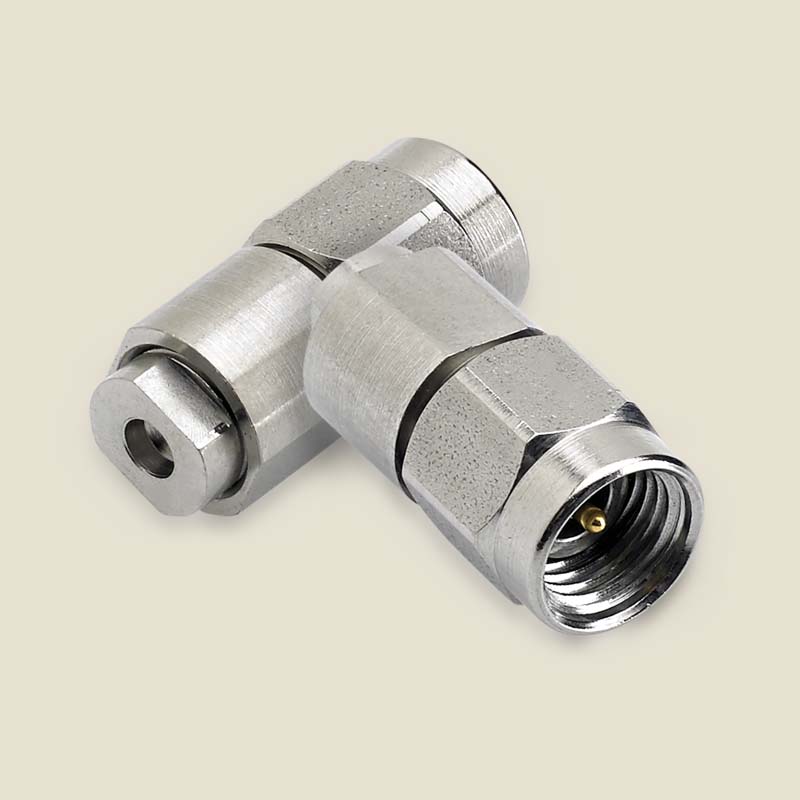

P1TR-29M-40G2W
RF Termination, 2.92mm Male, 2 Watts, 40 GHz
$ 124.89 $ 124.89 124.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 124.89
Length (in)
0.67
Max VSWR
1.25:1
Avg. Power (W)
2.0
Connector
2.92mm Male
Max Frequency (GHz)
40.0
P1TR-SAM-6G2W
RF Termination, SMA Male, 2 Watts, 6 GHz, Passivated Stainless Steel.
Limited to stock on hand.
$ 19.95 $ 19.95 19.95 USD
Length (in)
0.58
Max VSWR
1.2:1
Avg. Power (W)
2.0
Connector
SMA Male
Max Frequency (GHz)
6.0
P1TR-SAM-18G2W
RF Termination, SMA Male, 2 Watts.
Frequency DC to 18 GHz, VSWR 1.25 max.
$ 32.95 $ 32.95 32.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 32.95
Length (in)
0.58
Max VSWR
1.25:1
Avg. Power (W)
2.0
Connector
SMA Male
Max Frequency (GHz)
18.0
P1TR-NM-6G2W
RF Termination, N Male, 2 Watts, 6 GHz.
Limited to stock on hand.
$ 23.95 $ 23.95 23.95 USD
Pricelist
Min. Qty
Price
Length (in)
1.0
Max VSWR
1.2:1
Avg. Power (W)
2.0
Connector
N Male
Max Frequency (GHz)
6.0
P1AT-TNMF-18G2W-6
RF Attenuator, TNC Male to TNC Female, 18 GHz, 6 dB, 2 Watts.
Limited to stock on hand.
$ 49.50 $ 49.50 49.5 USD
Pricelist
Min. Qty
Price
  • 1
    $ 49.5
Connector 1
TNC Male
Connector 2
TNC Female
Max VSWR
1.35:1
Frequency Max (GHz)
18.0
Attenuation, Min (dB)
6.0
Attenuation (dB)
6.0
Attenuation Step Size (dB)
Fixed
Avg. Power (W)
2.0
Accuracy (dB)
0.3
P1AT-SAMF-6G2W-9
RF Attenuator, SMA Male to SMA Female, 6 GHz, 9 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
9.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
P1AT-SAMF-6G2W-8
RF Attenuator, SMA Male to SMA Female, 6 GHz, 8 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
8.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
P1AT-SAMF-6G2W-7
RF Attenuator, SMA Male to SMA Female, 6 GHz, 7 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
7.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
P1AT-SAMF-6G2W-6
RF Attenuator, SMA Male to SMA Female, 6 GHz, 6 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
6.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
P1AT-SAMF-6G2W-5
RF Attenuator, SMA Male to SMA Female, 6 GHz, 5 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
5.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
P1AT-SAMF-6G2W-40
RF Attenuator, SMA Male to SMA Female, 6 GHz, 40 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
40.0
Avg. Power (W)
2.0
Accuracy (dB)
1.0
P1AT-SAMF-6G2W-4
RF Attenuator, SMA Male to SMA Female, 6 GHz, 4 dB, 2 Watts.
Limited to stock on hand.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
4.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
P1AT-SAMF-6G2W-3
RF Attenuator, SMA Male to SMA Female, 6 GHz, 3 dB, 2 Watts
Limited to stock on hand.
Replacement part is P1AT-SAMF-18G2W-3.
$ 35.96 $ 35.96 35.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.96
Max VSWR
1.2:1
Frequency Max (GHz)
6.0
Attenuation (dB)
3.0
Avg. Power (W)
2.0
Accuracy (dB)
0.5
