P1-SMAP/SMAP-141CJ-36 | P1dB Inc
Call For A Custom Quote


This product is no longer available.

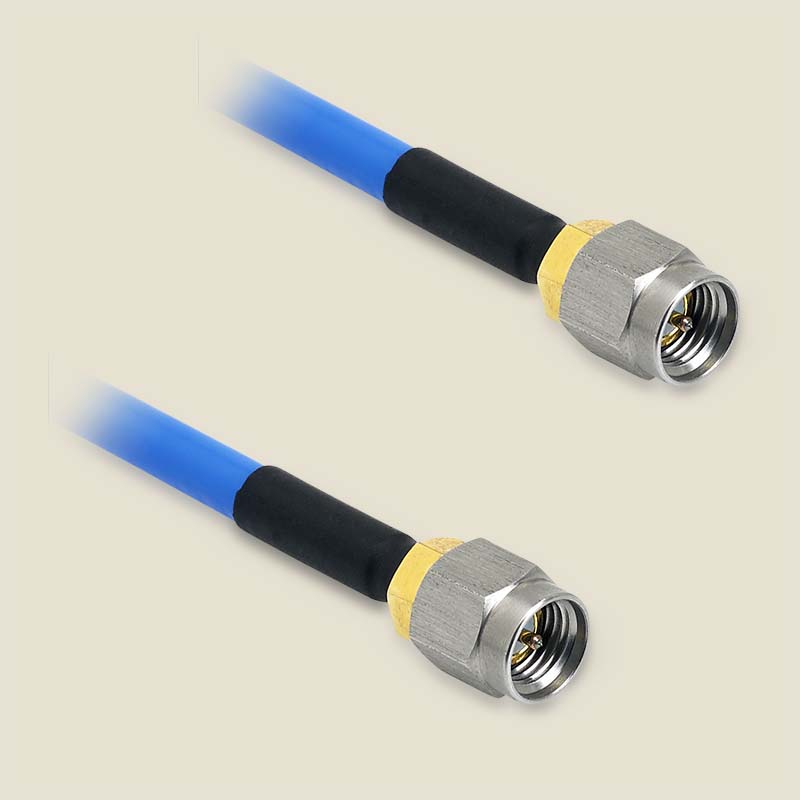

SMA Male to SMA Male cable assembly using 141CJ Conformable Coax, 36 inches long, Operating to 18 GHz.

Connector 1: SMA Male
Connector 2: SMA Male
Cable Type: 141CJ
Cable_Feature: Conformable
Length (in): 36.0
Outer Diameter (in): 0.168
Max. Frequency (GHz): 18.0
Data.F1: 1.0
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
VSWR1: 1.25
VSWR2: 1.3
VSWR3: 1.32
VSWR4: 1.35
IL1: 0.12
IL2: 0.31
IL3: 0.45
IL4: 0.65
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: SPCW
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.38
OpTmpMin: -85.0
OpTmpMax: 200.0
Shield1: Tinned Cu/Sn Braid
