P1CA-24M24M-085CJ-4

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax

71.65 71.65 71.65 USD

71.65

This combination does not exist.

Add to Cart

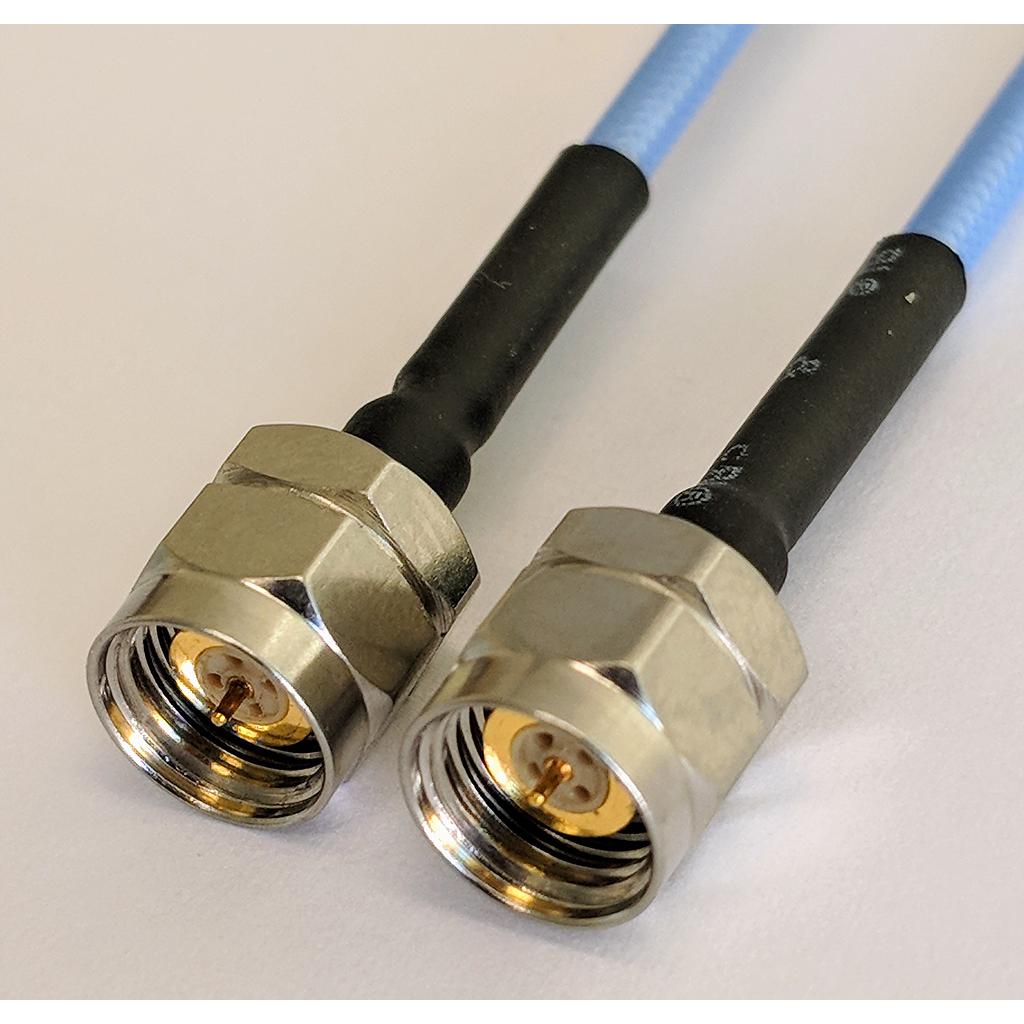

2.4mm Male to 2.4mm Male RF flex cable using Flexiform 085 hand formable cable, 4 inches long, Operating to 50 GHz.


Connector 1: 2.4mm Male
Connector 2: 2.4mm Male
Cable Type: Flexiform 085
Cable_Feature: Hand Formable
Length (in): 4.0
Outer Diameter (in): 0.104
Max. Frequency (GHz): 50.0 GHz
Data.F1: 1.0
Data.F2: 18.0
Data.F3: 30.0
Data.F4: 50.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.3
VSWR4: 1.45
IL1: 0.2
IL2: 1.3
IL3: 1.5
IL4: 1.95
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Passivated Stainless Steel
ConnContact1: Gold Plated Beryllium Copper
ConnNut2: Passivated Stainless Steel
ConnBody2: Passivated Stainless Steel
ConnContact2: Gold Plated Beryllium Copper
InnerCond: SPC
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.25
OpTmpMin: -55.0
OpTmpMax: 125.0
