P1CA-29M29M-085CJ-12

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax

54.67 54.67 54.67 USD

54.67

This combination does not exist.

Add to Cart

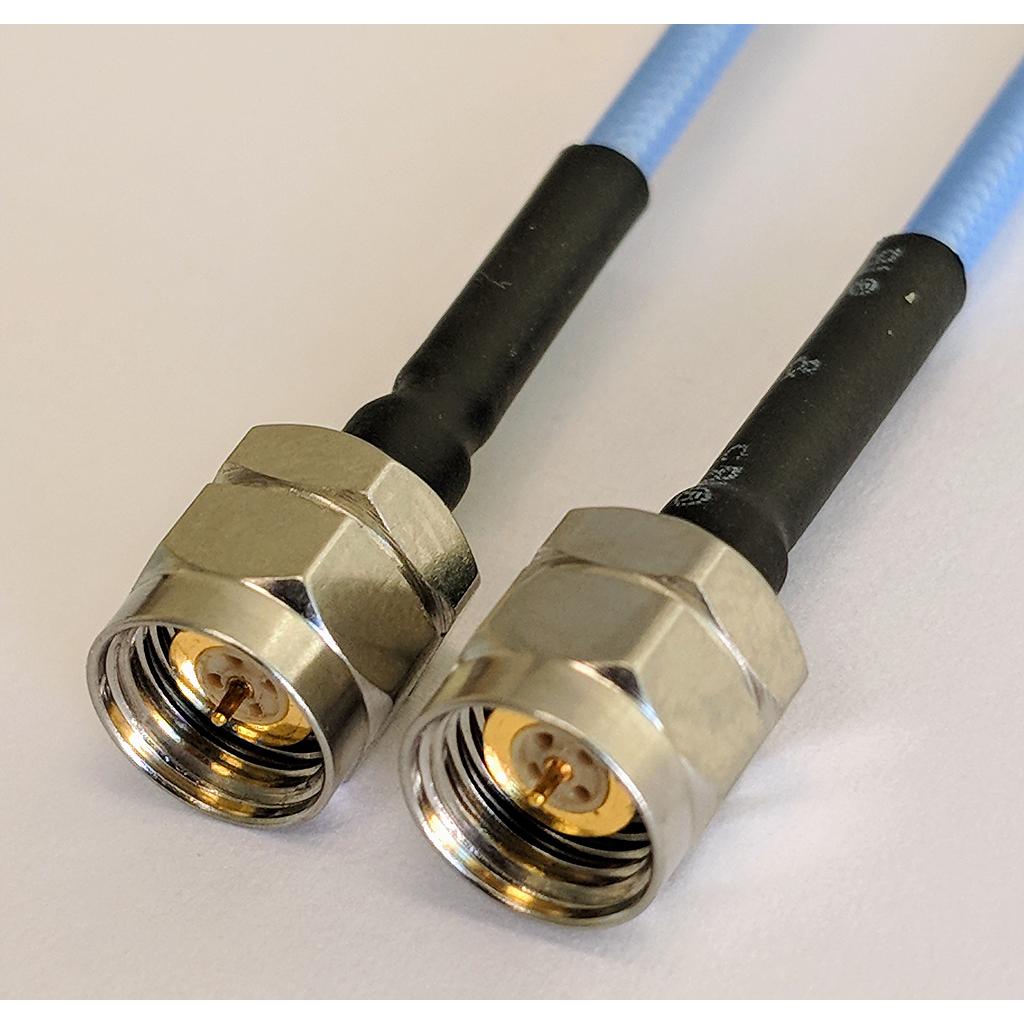

2.92mm Male to 2.92mm Male RF flex cable using Flexiform 085 hand formable cable, 12 inches long, Operating to 40 GHz.


Connector 1: 2.92mm Male
Connector 2: 2.92mm Male
Cable Type: Flexiform 085
Cable_Feature: Hand Formable
Length (in): 12.0
Outer Diameter (in): 0.104
Max. Frequency (GHz): 40.0
Data.F1: 1.0
Data.F2: 18.0
Data.F3: 30.0
Data.F4: 40.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.35
VSWR4: 1.45
IL1: 0.2
IL2: 1.3
IL3: 1.5
IL4: 1.8
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Passivated Stainless Steel
ConnContact1: Gold Plated Beryllium Copper
ConnNut2: Passivated Stainless Steel
ConnBody2: Passivated Stainless Steel
ConnContact2: Gold Plated Beryllium Copper
InnerCond: SPC
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.25
OpTmpMin: -55.0
OpTmpMax: 125.0
