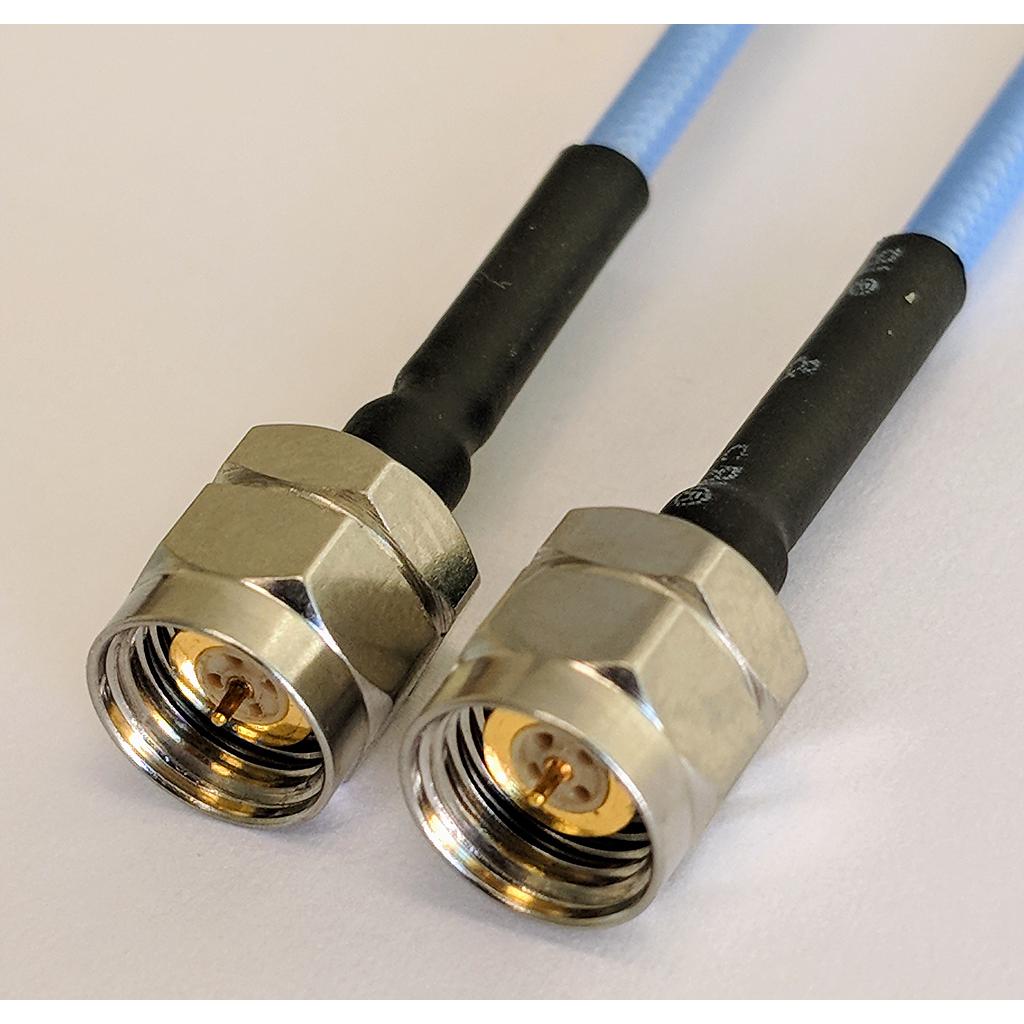

P1CA-29M29M-085CJ-2.5
2.92mm Male to 2.92mm Male RF flex cable using Flexiform 085 hand formable cable, 2.5 inches long, Operating to 40 GHz.
Connector 1:
2.92mm Male
Connector 2:
2.92mm Male
Cable Type:
Flexiform 085
Cable_Feature:
High Performance
Length (in):
2.5
Outer Diameter (in):
0.104
Max. Frequency (GHz):
40.0
Data.F1:
1.0
Data.F2:
18.0
Data.F3:
30.0
Data.F4:
40.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.45
IL1:
0.2
IL2:
IL2: 1.3
IL3:
1.5
IL4:
1.8
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Beryllium Copper
InnerCond:
SPC
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.25
OpTmpMin:
-40.0
OpTmpMax:
125.0
